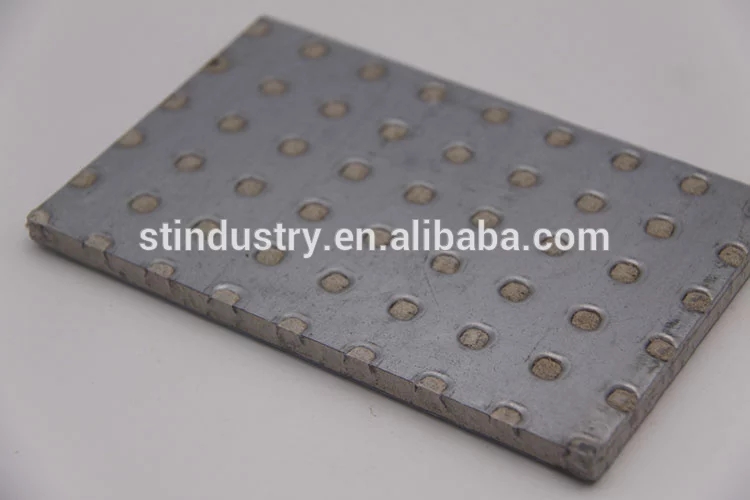

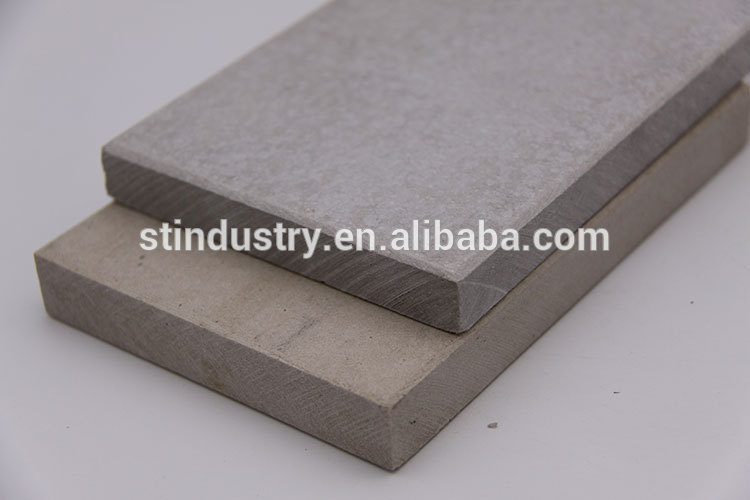

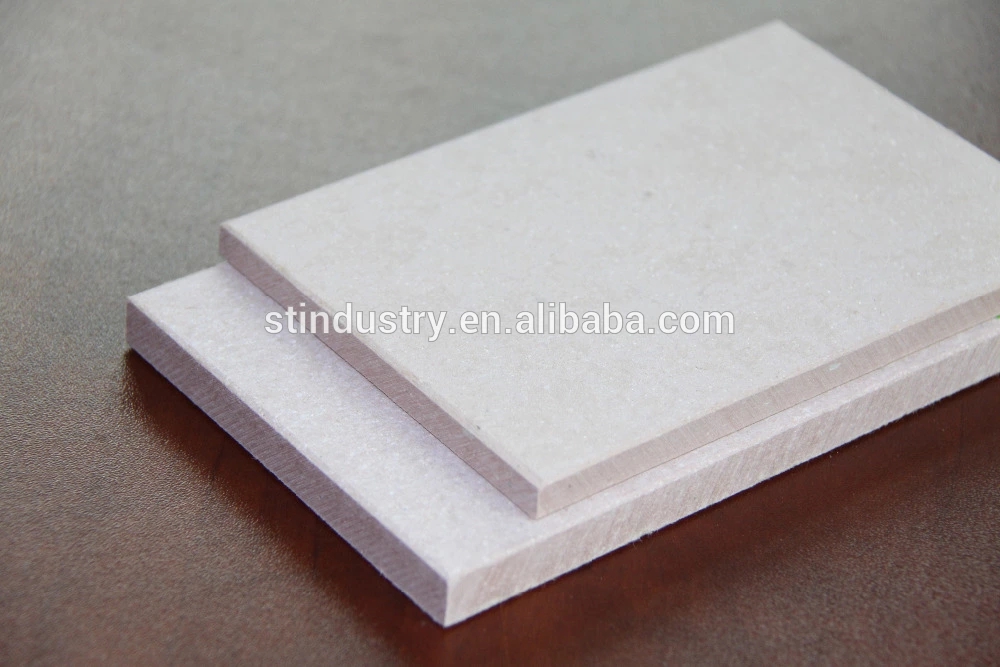

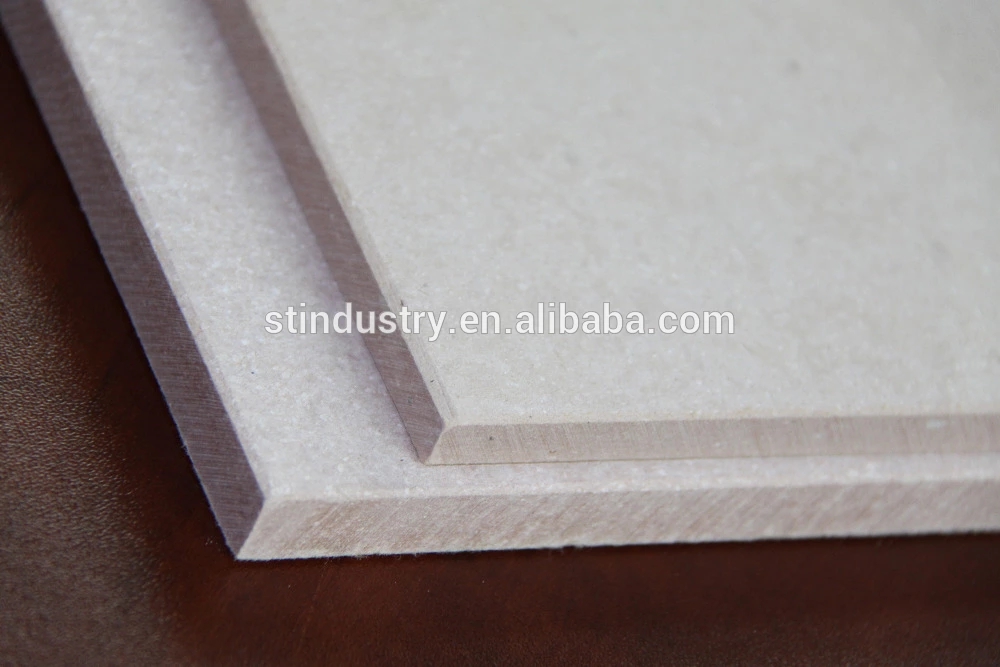

High quality fiber cement board

Consult

Overview

Quick Details

  • Place of Origin:

  • Guangdong, China (Mainland)

  • Brand Name:

  • ST INDUSTRY

  • Model Number:

  • FB1415

  • Raw material composition:

  • Cement;Quartz;Natural Fiber;Suspension

  • Type:

  • Non-Asbestos Fiber Cement Fireproof Boards

  • Composition of Finished Product:

  • Crystalloid Calcium Carbonate;Cellulose;Mica

  • Usage:

  • Partition,Ceiling,Fireproof Board of the Air Passage

  • Non-Combustibility:

  • GB8624-A1 SGS BS476 Part 4

  • Thermal Expansion(-20°C~+80°C):

  • ≤5.0*10-6 M/(M-K)

  • Length*Width*Thickness(Mm):

  • 2440(Tolerance:±4)*1220(Tolerance:±3)*9/10/12/15(Tolerance:±0.3)

  • Bending Strength (Crosswise/Lengthways):

  • 6-8 Mpa/4-6 Mpa

  • Fire resistance period:

  • BS Certification:750°C

  • Name:

  • fireproof wall decoration board

Packaging & Delivery

  • Packaging Details

  • stong wooden pallet +pp bag+carboard

  • Delivery Time

  • within 15 day after receive the payment



TestsStandardsResults
Density
900 kg/m3 +/-10%
Nominal weight
8.9kg/m2 – 9mm
11.9kg/m2 – 12mm
14.8kg/m2 – 15mm
Surface alkalinity
pH 7-10
Flexural strength
6.0 MPa (along grain)
Flexural strength
9.5 MPa (across grain)
Moisture movement (ambient to saturated)
0.05%
Dimensional changes in length due to relative humidityBS EN 318+0.01% @20°C, RH 30%~85%
- 0.02% @20°C, RH 85%~30%
Moisture content
Ex works - 15%
In situ - 6%
Thermal conductivityEN 122640.17 W/mK
Linear thermal expansionBS EN ISO 10515-8-3.06 x 1E-6/°C
Fire rated systemsBS 476: Part 20-24 up to 240 minutes
BS EN1363-1 & 2
Non-combustible testAS 1530.1Pass
BS 476: Part 4
BS EN ISO 1182
Heat of combustionBS EN ISO 1716Pass
Reaction to FireEN 13501-1Euro Class A1
Surface spread of flame BS 476: Part 7Class 1
Fire propagation Test BS 476: Part 6Class 0
Test for ignitability BS 476: Part 5Class P
Minimum bending radius
Along grain
7200mm for 9mm
9800mm for 12mm
Acoustic reduction AS 1276.1thicknessRw, dBSTC
(over range 100-3150 Hz)AS 11919mm2626

ASTM E9099mm steel stud partition4646

ASTM E413105mm steel stud partition
