Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Model Number:
Wood Grain Siding Panels
Raw material composition:
autoclaved calcium silicate board
Thickness:
7.5mm /9mm / 12mm
Width:
190 mm/200mm/ 240mm/1220mm
Certificate:
ISO14001/ISO 9001
Surface texture:
SM SERIES/SAND BILLING SERIES/RED CHERRY SERIES
Usage:
internal and external applications
Feature:
Fireproof,waterproof,soudproof, heatproof
More Contents:
Freeze-thaw resistance,abration-resistance...
Packaging & Delivery
Packaging Details
Neutral carton with plastic and foam ,angle, strong wooden pallet
SM SERIES
SANDBILLING SERIES
RED CHERRY SERIES

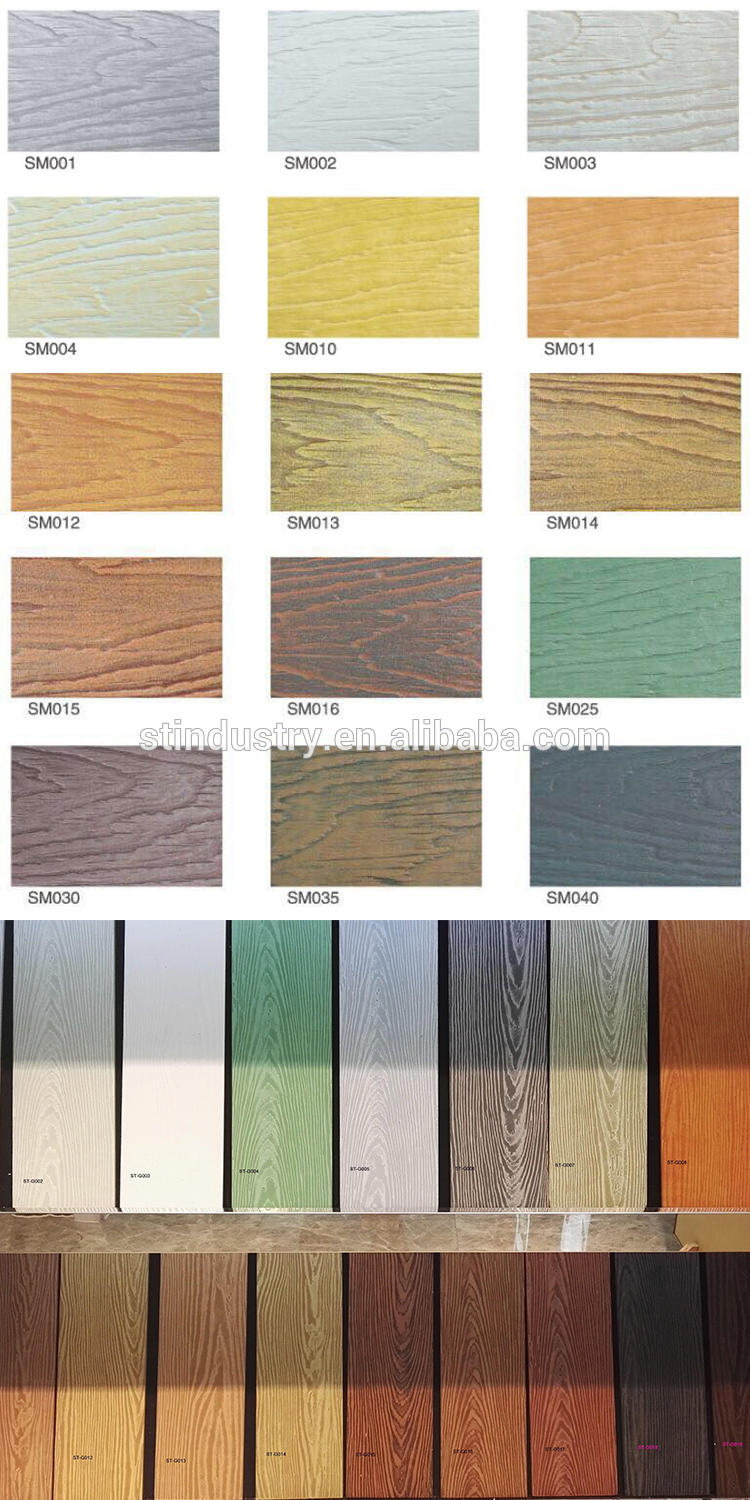

COLOR SWATCH
| Density | 1300 kg/m3 +/-5% |
| Surface alkalinity | pH 7-10 |
| Flexural strength (along grain) | 10.50 MPa |
| Flexural strength (across grain) | 13.80 MPa |
| Moisture movement (ambient to saturated) | 0.5 mm/m |
| Moisture content | Ex works - 15% |
| In situ - 5% |
| Thermal conductivity | 0.20 W/mK |
| Resistance to continuous heating | 80°C |
| Non-combustibility | BS 476: Part 4: 1970 |
| BS EN ISO 1182: 2002 |
| GB8624-1997, Grade A |
| Heat of combustion | BS EN ISO 1716: 2002 |
| Building regulations classification | Euro Class A1 |
| Non-permeability | ASTM C1185:2003 |
| Freezing and thawing test | No alteration nor de-lamination |
| after 25cycles of freezing/thawing |
| Minimum Bending Radius (along grain) | 5600mm for 7.5mm |
| 6600mm for 9mm |
| 8800mm for 12mm |
SPECIFIC PROPERTIES AND APPLICATIONS

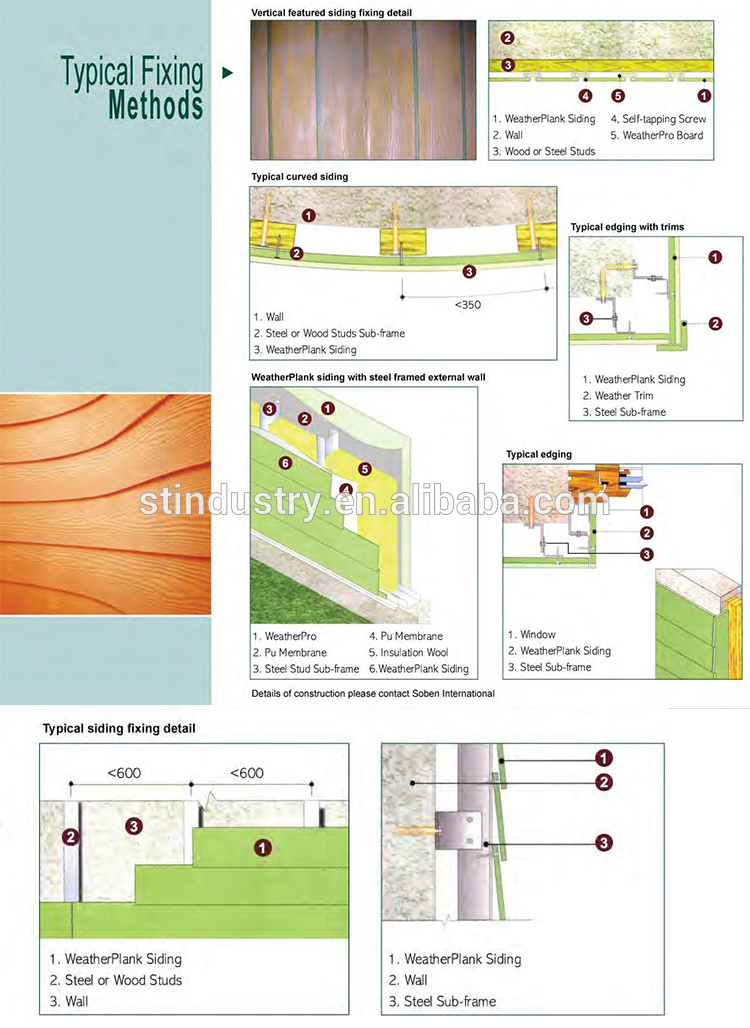

FIXING METHOD
About us

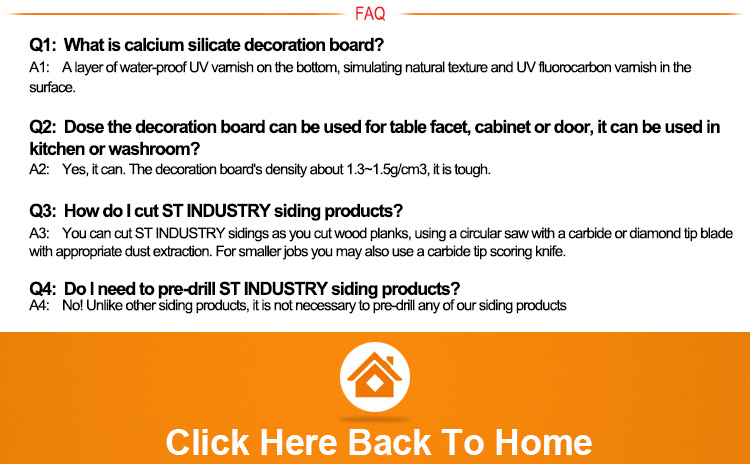

FAQ
