12mm waterproof heat resistant wooden acoustic panel

Consult

Overview

Quick Details

  • Place of Origin:

  • Shanghai, China (Mainland)

  • Brand Name:

  • ST INDUSTRY

  • Model Number:

  • Wood Grain Siding Panels

  • Raw material composition:

  • autoclaved calcium silicate board

  • Thickness:

  • 7.5mm /9mm / 12mm

  • Width:

  • 190 mm/200mm/ 240mm/1220mm

  • Length:

  • 2400mm/3000mm

  • Certificate:

  • ISO14001/ISO 9001

  • Surface texture:

  • SM SERIES/SAND BILLING SERIES/RED CHERRY SERIES

  • Usage:

  • internal and external applications

  • Feature:

  • Fireproof,waterproof,soudproof, heatproof

  • More Contents:

  • Freeze-thaw resistance,abration-resistance...

  • Name:

  • wooden acoustic panel

Packaging & Delivery

  • Packaging Details

  • Neutral carton with plastic and foam ,angle, strong wooden pallet

  • Delivery Time

  • 15 days after received the payments

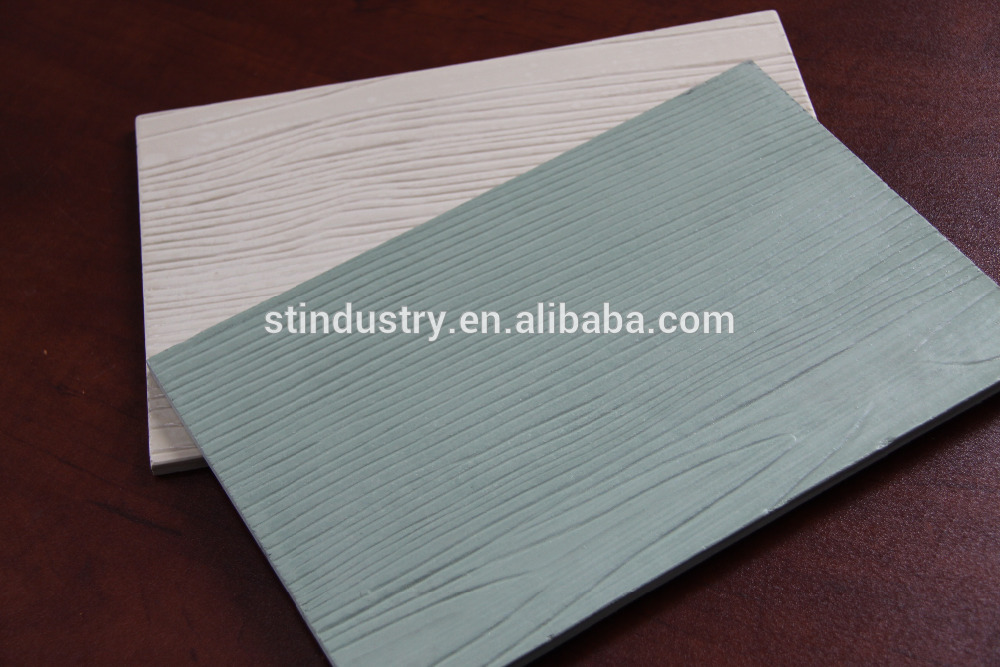

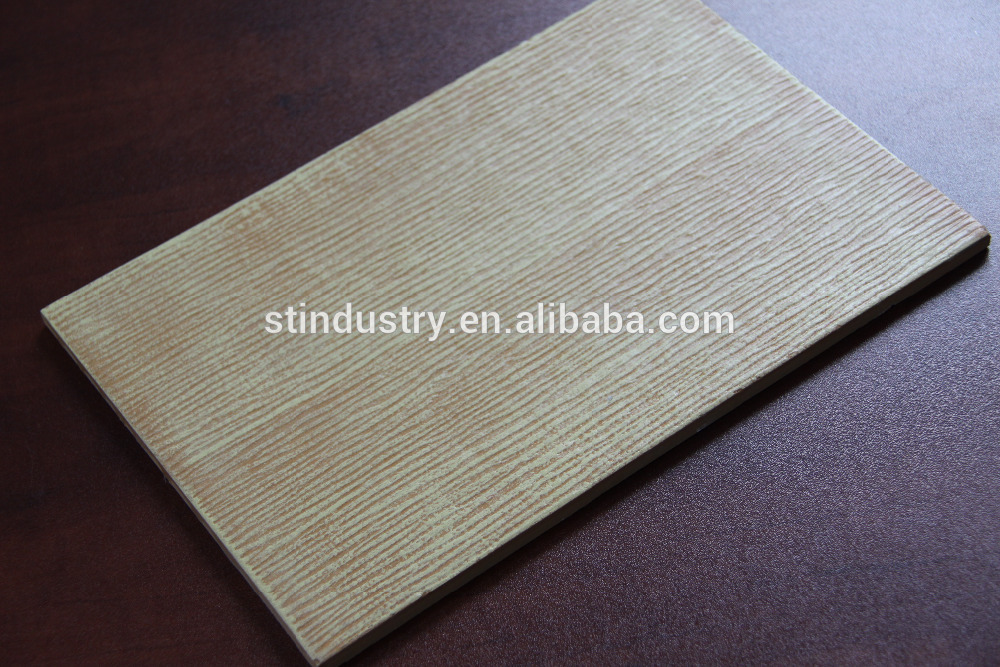

SM SERIES

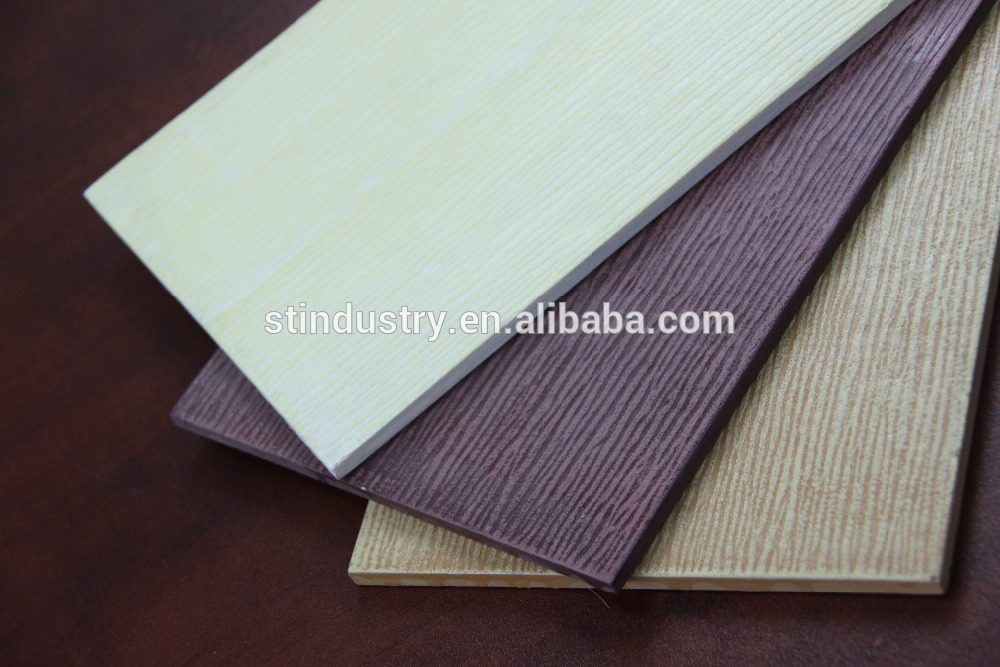

SANDBILLING SERIES

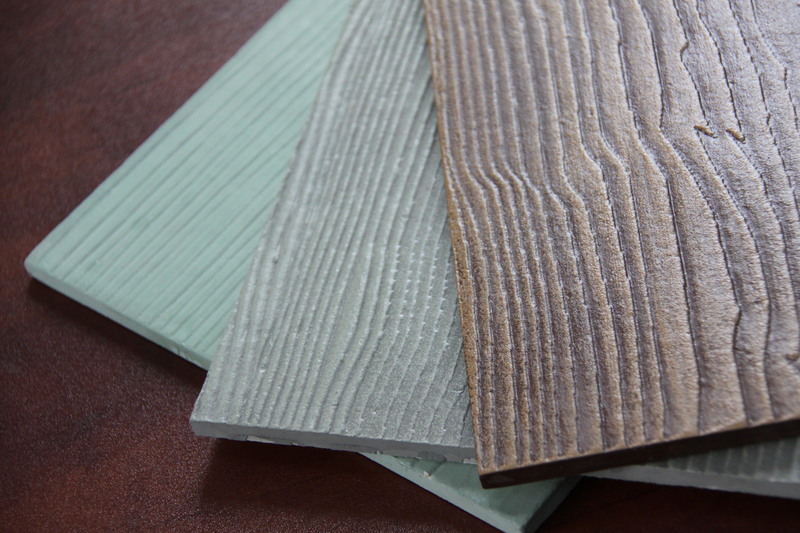

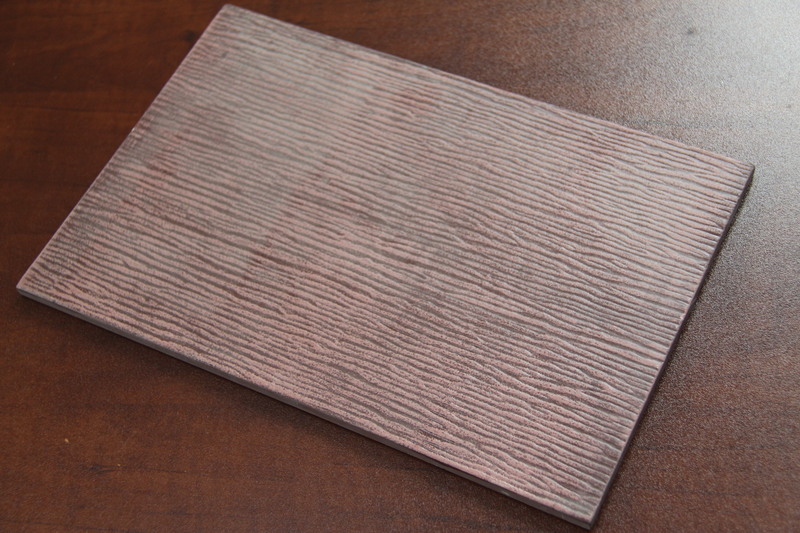

RED CHERRY SERIES

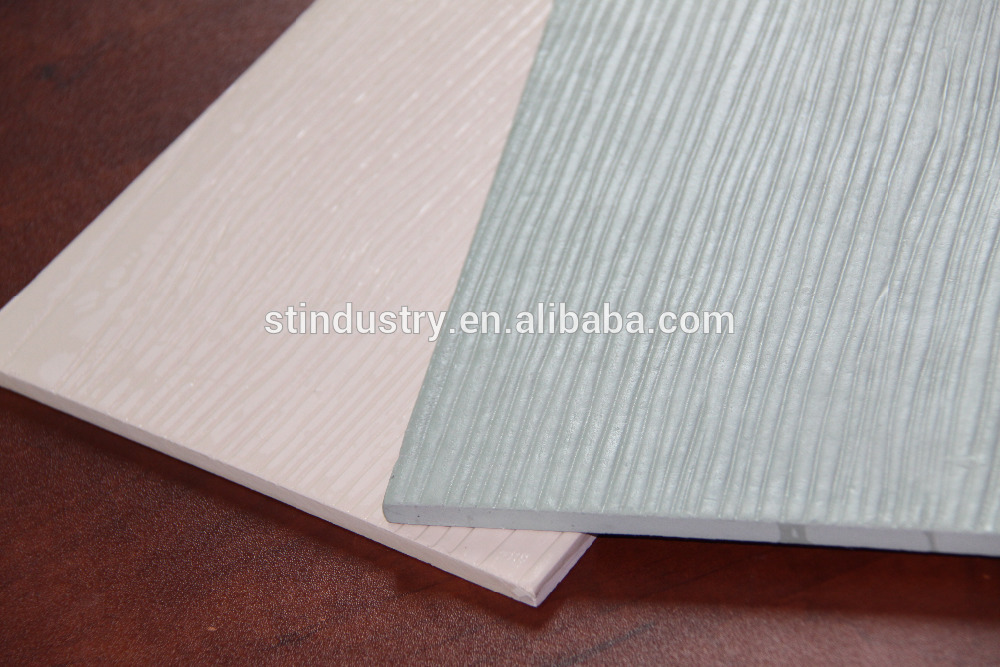

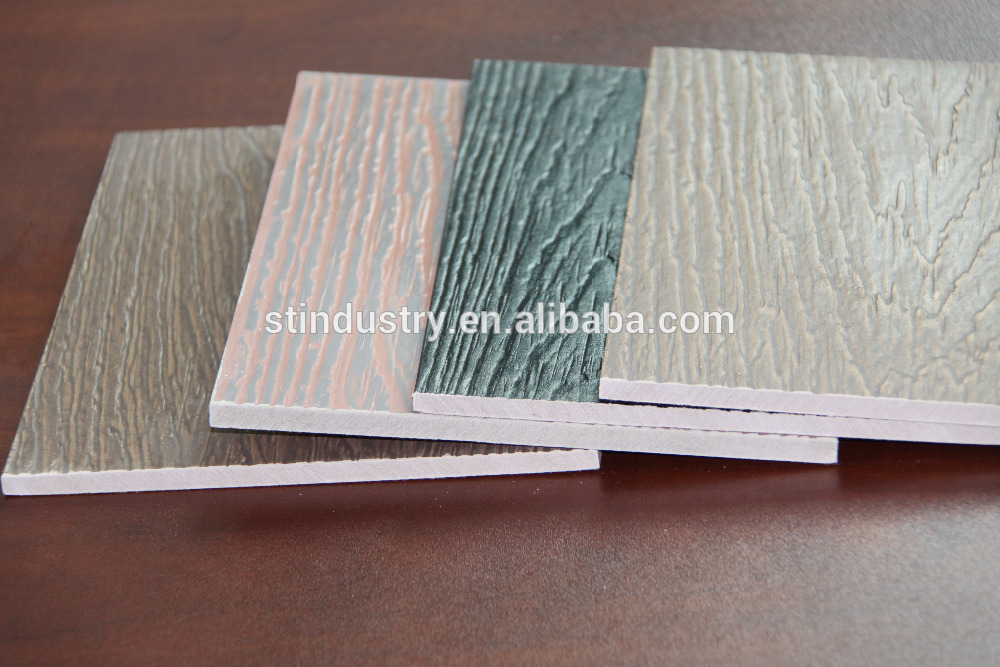

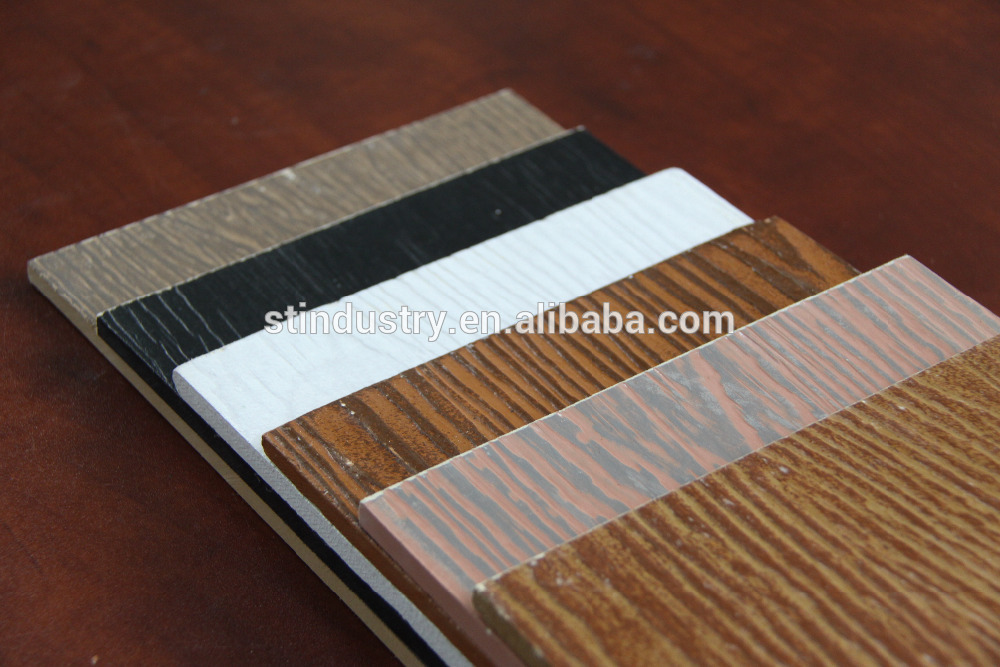

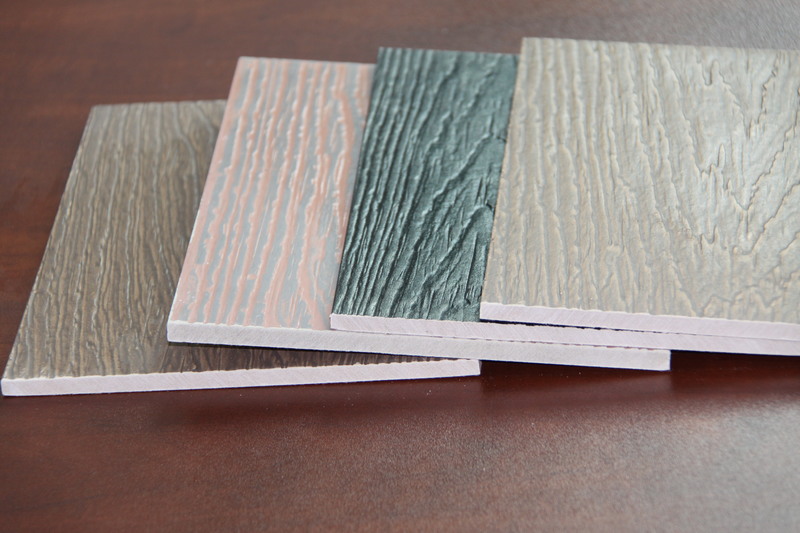

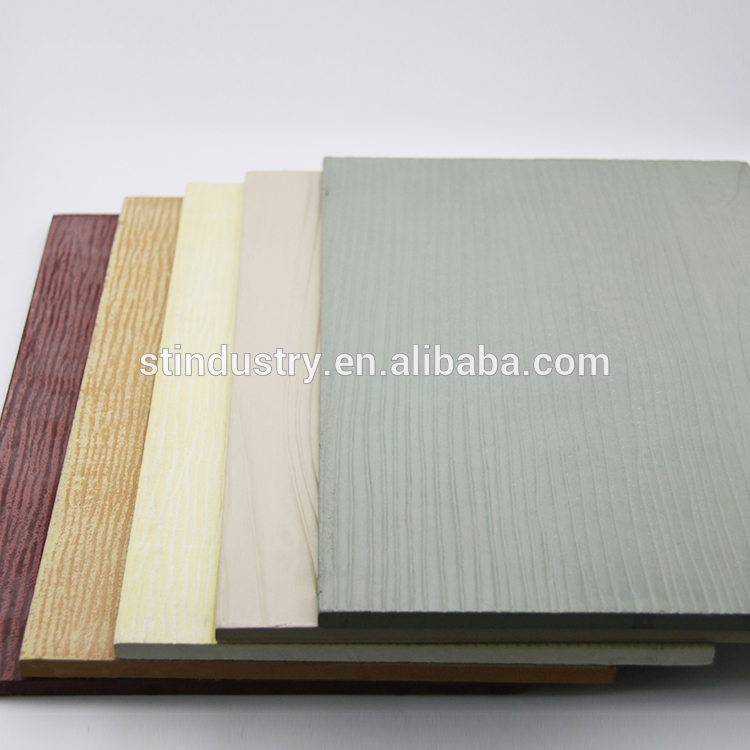

COLOR SWATCH



Density1300 kg/m3 +/-5%
Surface alkalinitypH 7-10
Flexural strength (along grain)10.50 MPa
Flexural strength (across grain)13.80 MPa
Moisture movement (ambient to saturated)0.5 mm/m
Moisture contentEx works - 15%
In situ - 5%
Thermal conductivity0.20 W/mK
Resistance to continuous heating80°C
Non-combustibilityBS 476: Part 4: 1970
BS EN ISO 1182: 2002
GB8624-1997, Grade A
Heat of combustionBS EN ISO 1716: 2002
Building regulations classificationEuro Class A1
Non-permeabilityASTM C1185:2003
Freezing and thawing testNo alteration nor de-lamination
after 25cycles of freezing/thawing
Minimum Bending Radius (along grain)5600mm for 7.5mm
6600mm for 9mm
8800mm for 12mm



  SPECIFIC PROPERTIES AND  APPLICATIONS

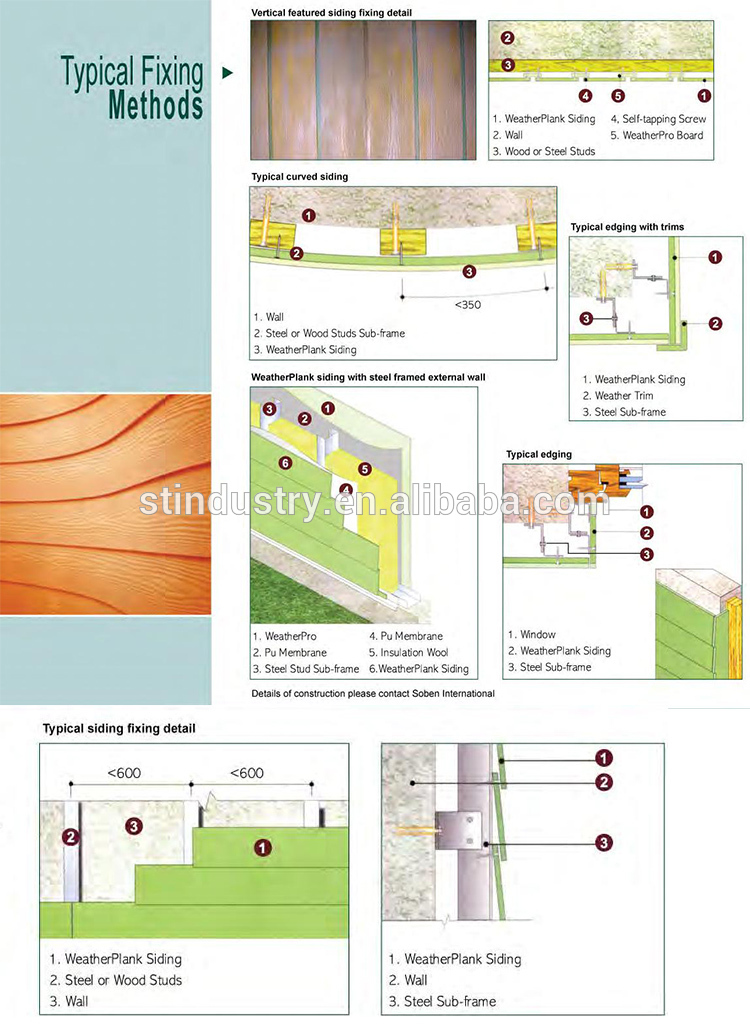

  FIXING METHOD

About us

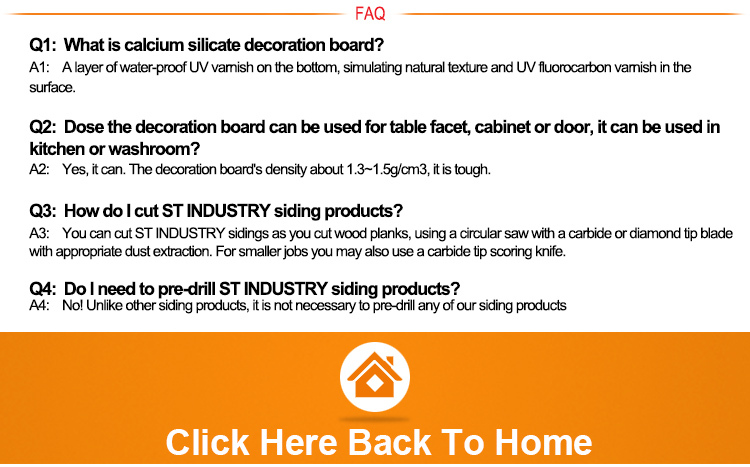

FAQ
