Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
ST INDUSTRY
Model Number:

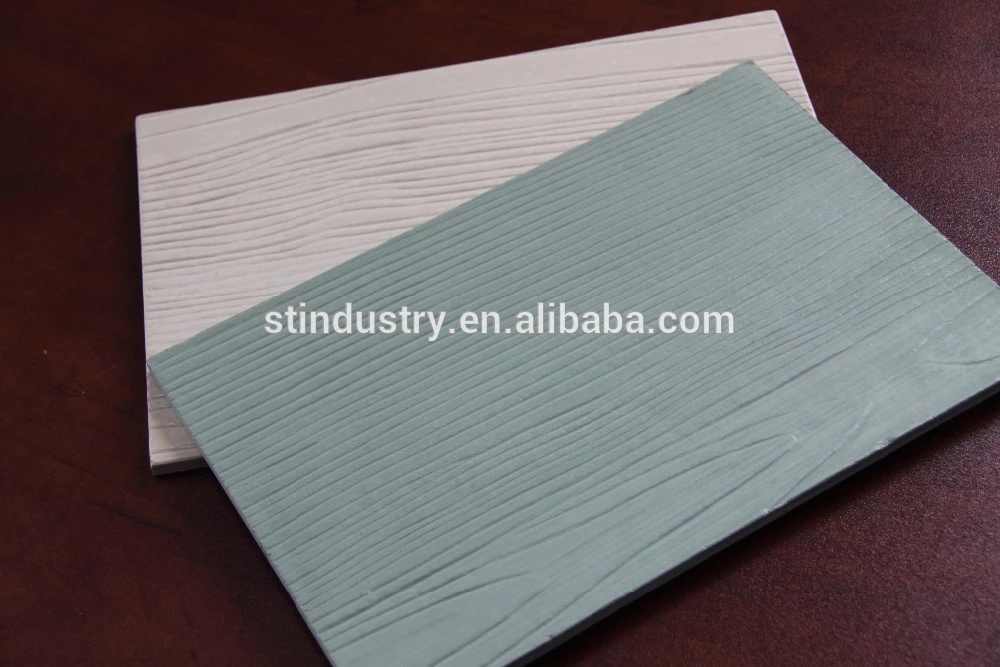

Wood Grain Siding Panels
Raw material composition:
autoclaved calcium silicate board
Thickness:
7.5mm /9mm / 12mm
Width:
190 mm/200mm/ 240mm/1220mm
Length:
2400mm/3000mm
Certificate:
ISO14001/ISO 9001
Surface texture:
SM SERIES/SAND BILLING SERIES/RED CHERRY SERIES
Usage:
internal and external applications
Feature:
Fireproof,waterproof,soudproof, heatproof
More Contents:
Freeze-thaw resistance,abration-resistance...
Name:
smart board siding
Packaging & Delivery
Packaging Details
Neutral carton with plastic and foam ,angle, strong wooden pallet

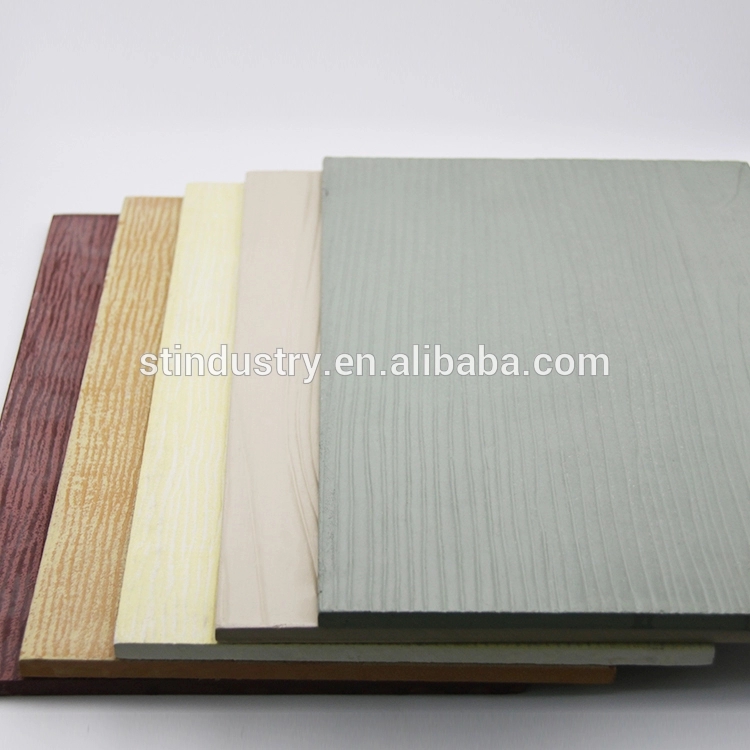

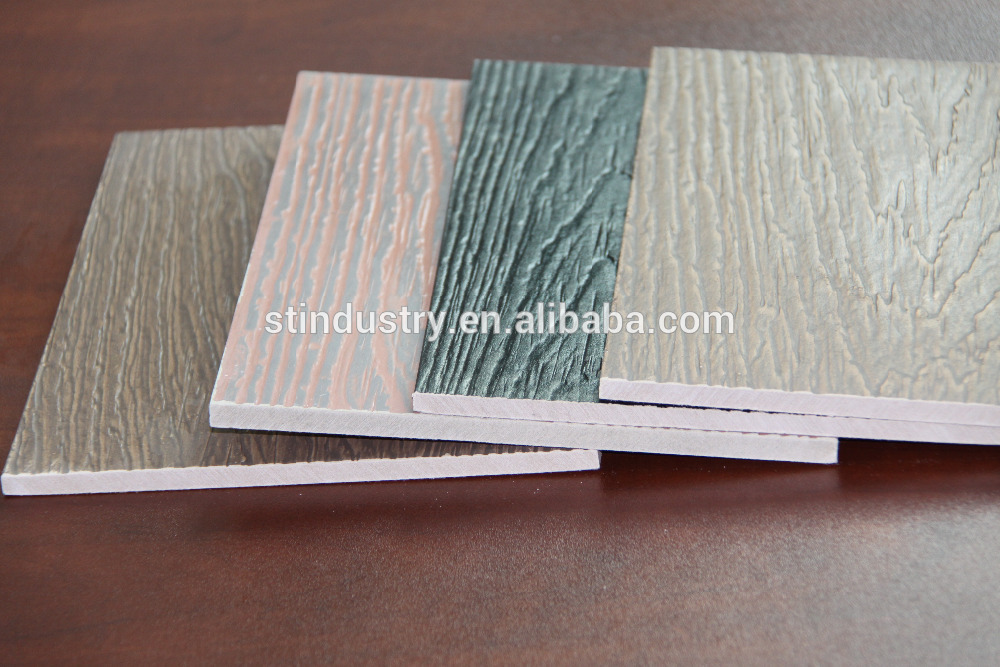

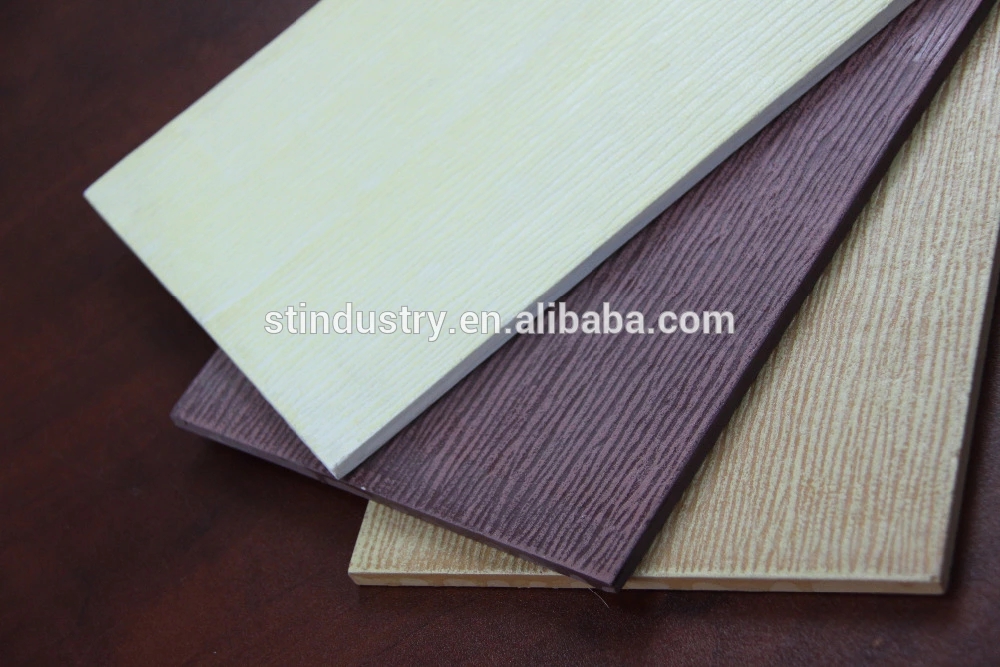

SM SERIES

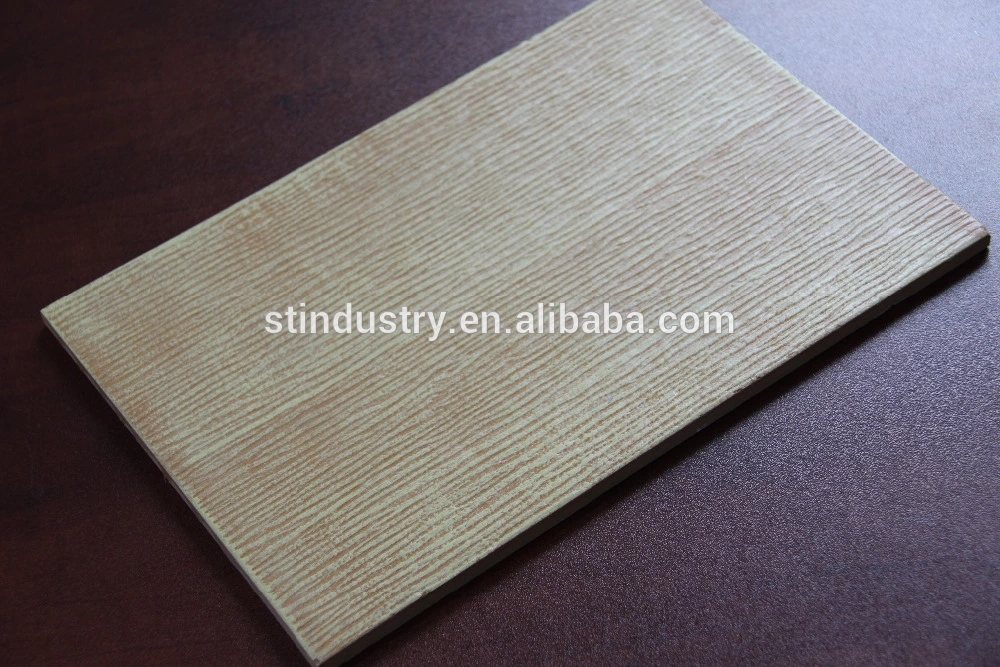

SANDBILLING SERIES
RED CHERRY SERIES

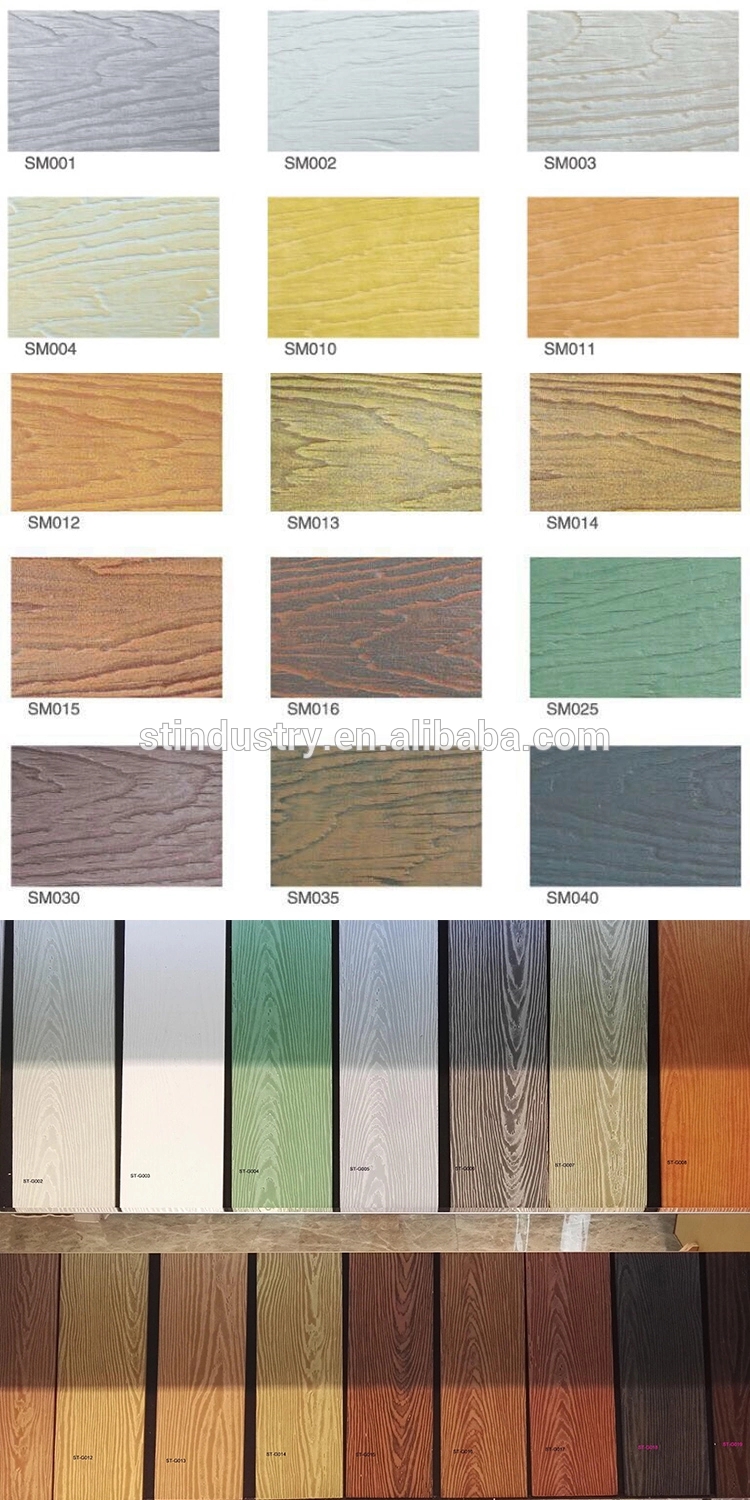

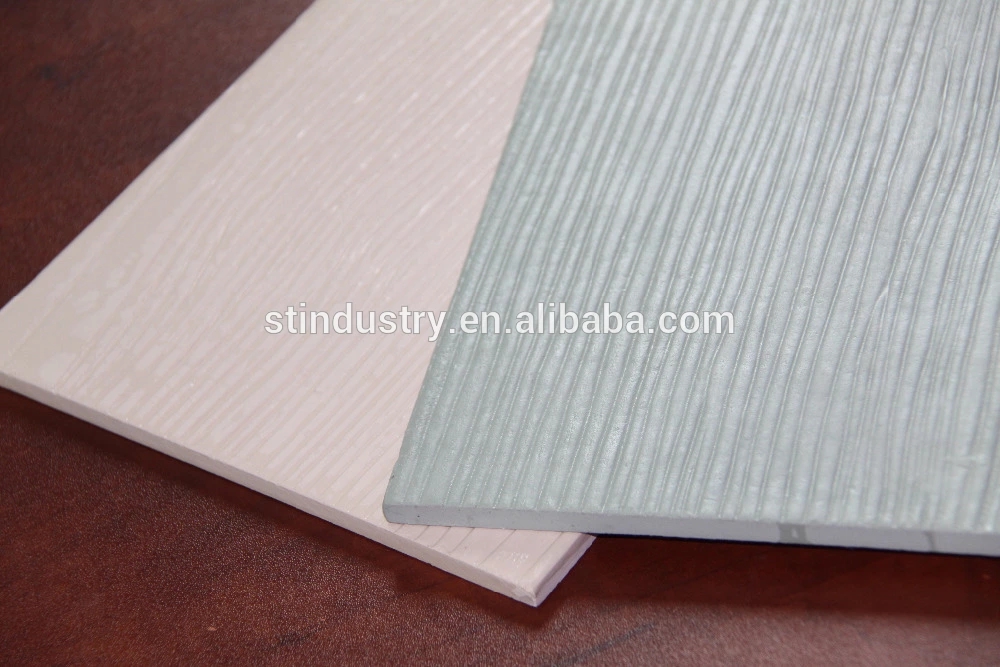

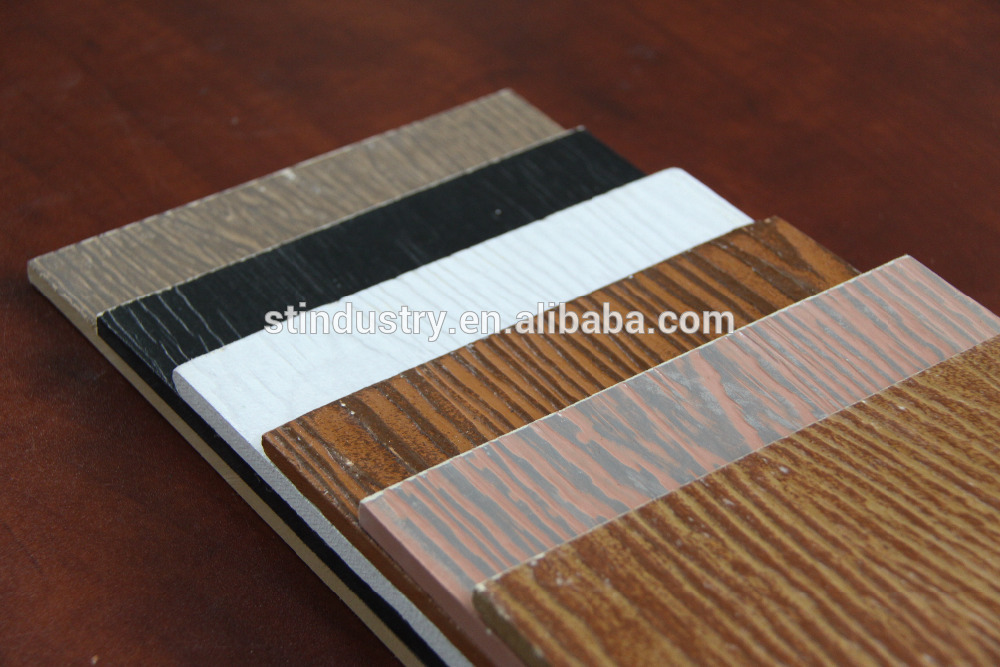

COLOR SWATCH
Density | 1300 kg/m3 +/-5% |
Surface alkalinity | pH 7-10 |
Flexural strength (along grain) | 10.50 MPa |
Flexural strength (across grain) | 13.80 MPa |
Moisture movement (ambient to saturated) | 0.5 mm/m |
Moisture content | Ex works - 15% |
In situ - 5% | |
Thermal conductivity | 0.20 W/mK |
Resistance to continuous heating | 80°C |
Non-combustibility | BS 476: Part 4: 1970 |
BS EN ISO 1182: 2002 | |
GB8624-1997, Grade A | |
Heat of combustion | BS EN ISO 1716: 2002 |
Building regulations classification | Euro Class A1 |
Non-permeability | ASTM C1185:2003 |
Freezing and thawing test | No alteration nor de-lamination |
after 25cycles of freezing/thawing | |
Minimum Bending Radius (along grain) | 5600mm for 7.5mm |
6600mm for 9mm | |
8800mm for 12mm |
SPECIFIC PROPERTIES AND APPLICATIONS

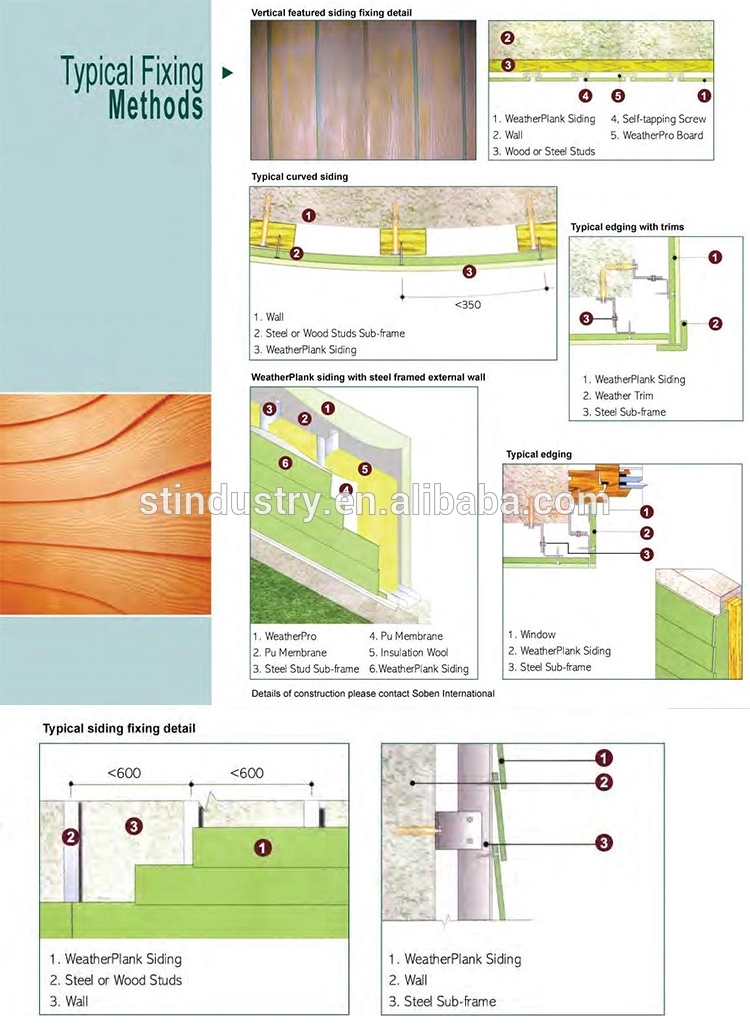

FIXING METHOD
About us

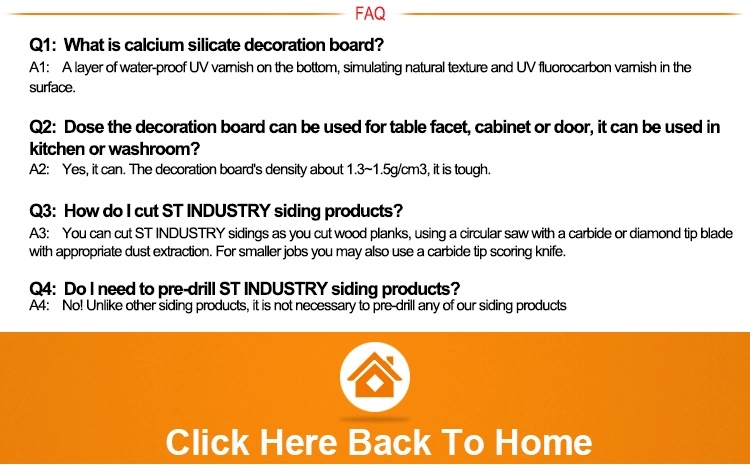

FAQ
