Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ST INDUSTRY
Model Number:
sandwich panel
Panel Material:
Nonmetal
Type:
EPS/XPS/rock wool sandwich panel
Name:
EPS/XPS/rock wool sandwich panel
Raw material composition:
Inorganic board+ fluorocarbon coating+Anti-fire material
Specifications:
1220*2440*
Thick:
20mm,26mm (customized)
Surface hardness:
≥3H
Wet-expansion degree(%):
≤ 0.25

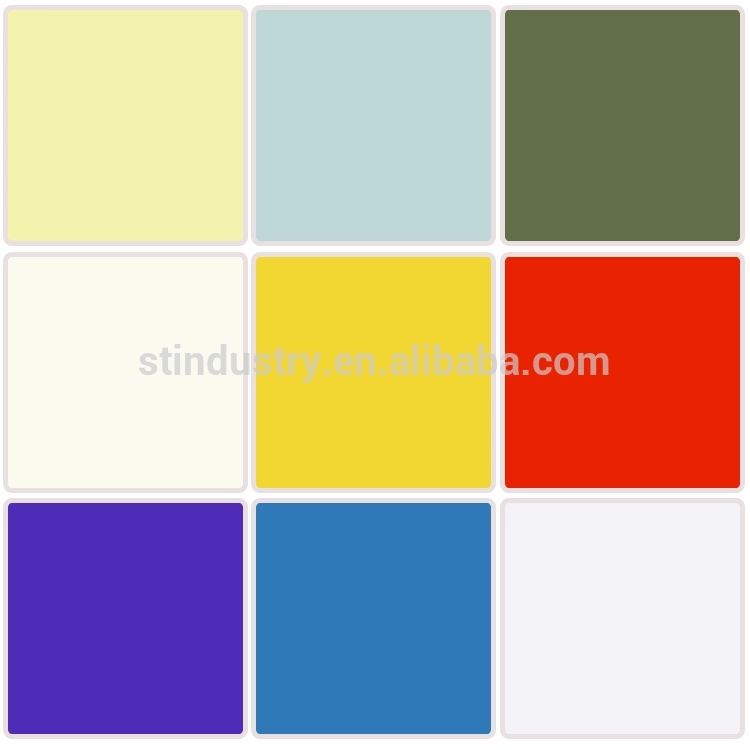

Color:
Brown, cream, white,black,red,beidge, any colors
Surface finishing:
marble, wood, grain, metal, solid color
Feature:
Fireproof,waterproof,soudproof, heatproof
More Contents:
Freeze-thaw resistance,abration-resistance
Packaging & Delivery
Packaging Details
Neutral carton with plastic and foam ,angle, strong wooden pallet
Delivery Time
Shipped in 25 days after payment

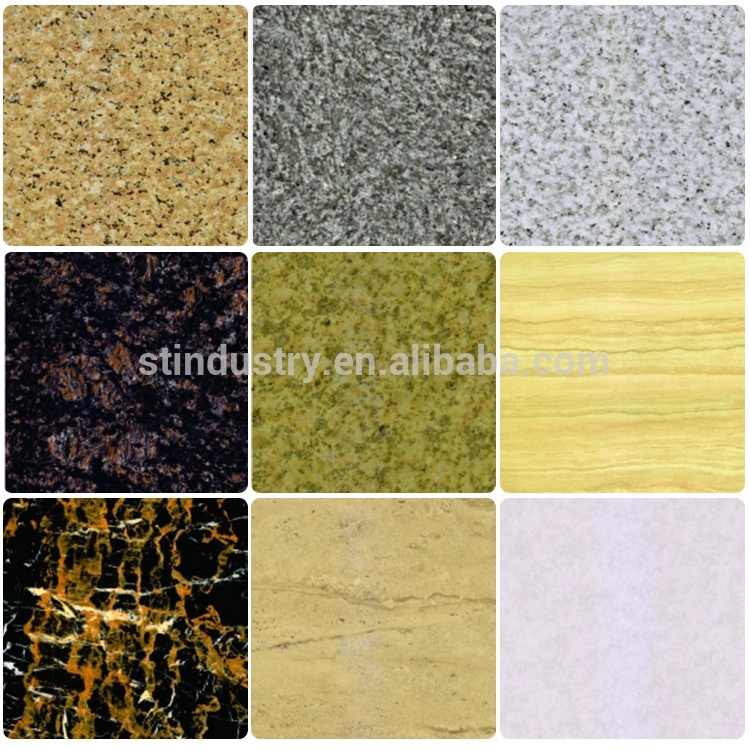

Imitation Stone Facing

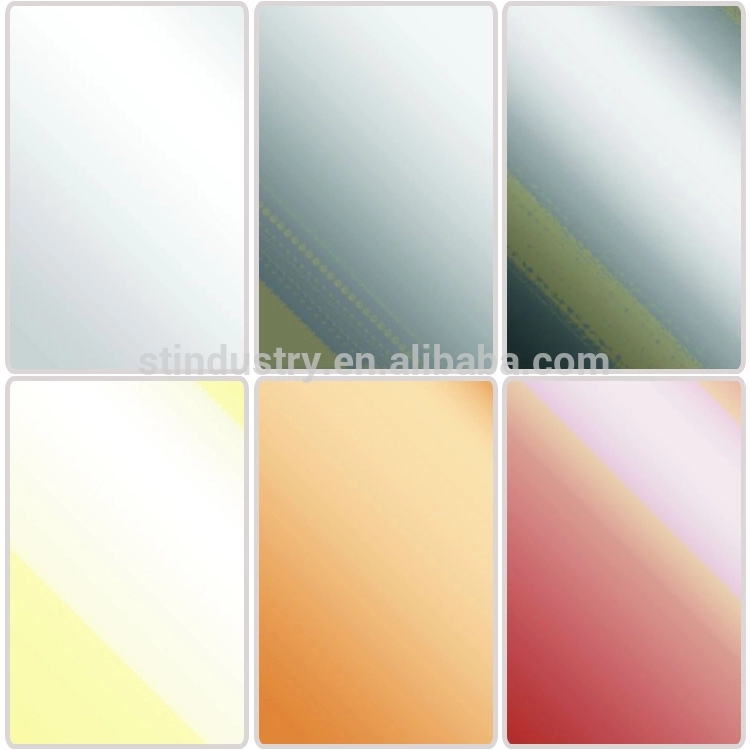

Metallic Paint Facing

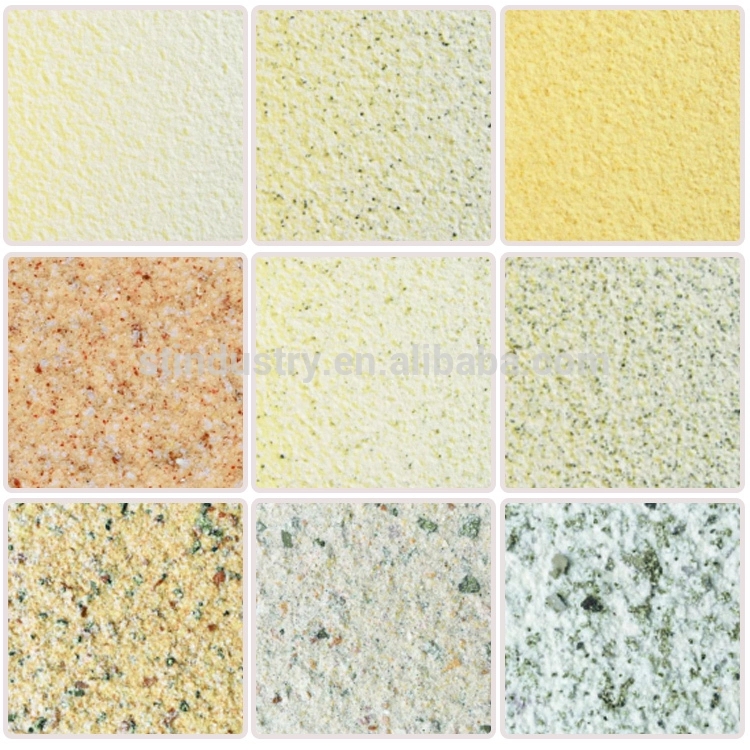

Multicolor Paint Facing

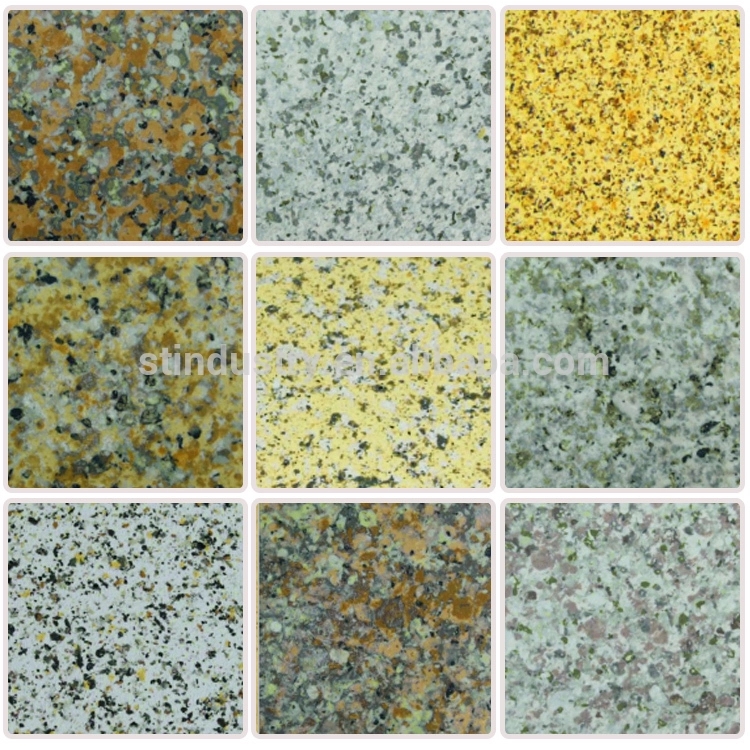

Really Stone Paint Facing
<
Color | wooden grain, marble stones, solid color | Category | ST decorative board | |

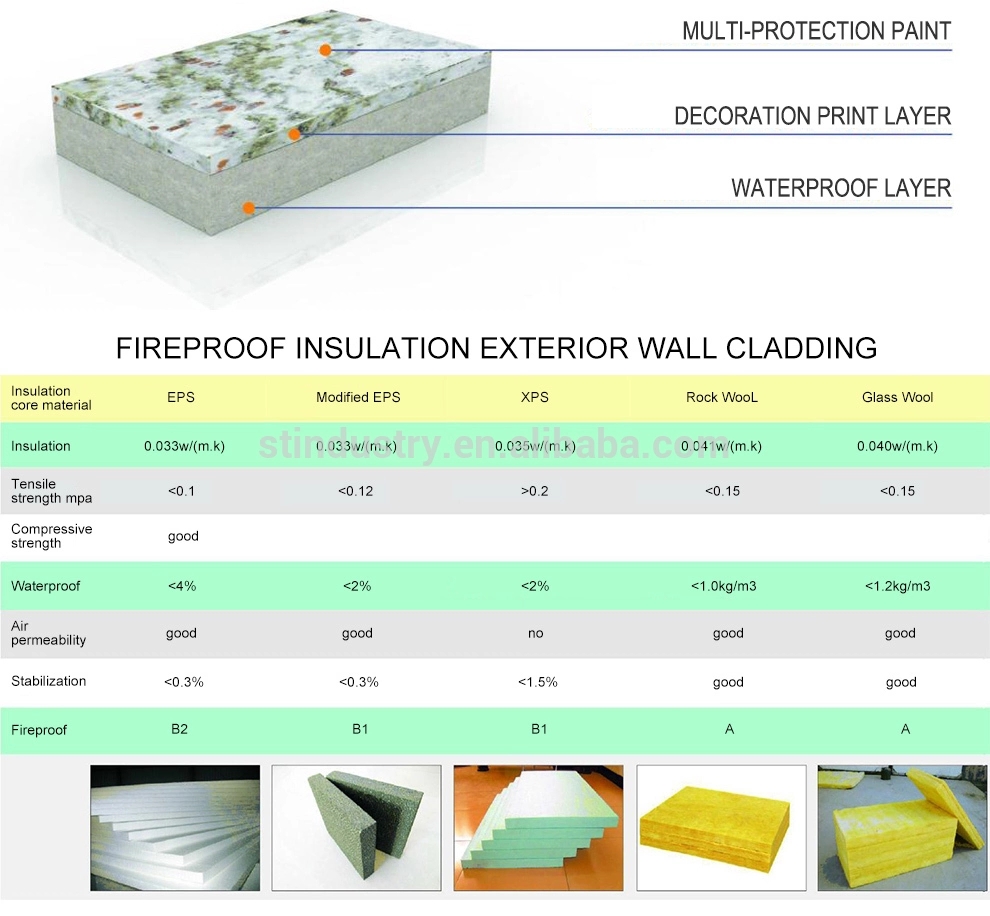

Thickness | 26mm 20mm ( Can be customized) | Anti-fire material | EPS | 1 layer board |
Modified EPS | 1 layer board | |||
XPS | 1 layer board | |||
Rock Wool | 2 layer board | |||
Standard Size | 1220MM*2440MM (Other size can be customized) | Fireproofing | A | |
Washability | Without leakage after wiping for 100times | Adhesive force,level | 0 | |
Freezing resistance | Without crack and delamination after 25 freeze-thawcycles | Thermal Conductivity | ≤0.35w (m.k) | |
Asbestos content | 100% free, accordant to HJ/T205-2005 | |||
Radioactivity | Environment protection class A , accordant to GB6565-2001 | |||
Incombustibility | Class A , accordant to GB8624-2006 | |||
Frost-resistance | No rupture and shrinkage after going for 25 times of freeze-thaw cycle | |||
Water imperimeability | No damp or drip on the back after dipped with water 24 hours | |||
Estimated durability | More than 20 years | |||

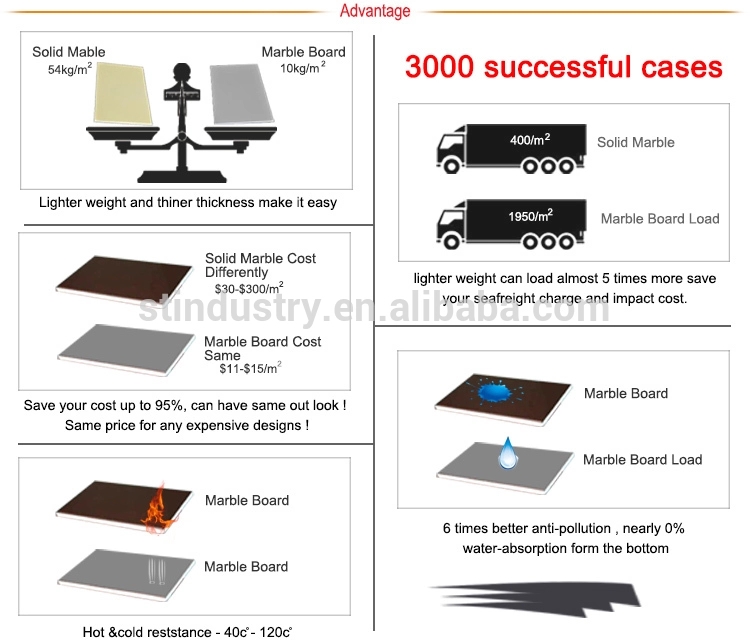

Advantages | 1. Low density, light weight. | |||
2. Fireproof, thermal insulation, fungus resistant, moisture-proof, sound insulation. | ||||
3. Easy to install, short construction period, splicing installation saves time and labor. Saves much cost than traditional brick construction. | ||||
4. 26mm thickness sandwich board is able to bear 50KG light capacity. |
Product application
About us

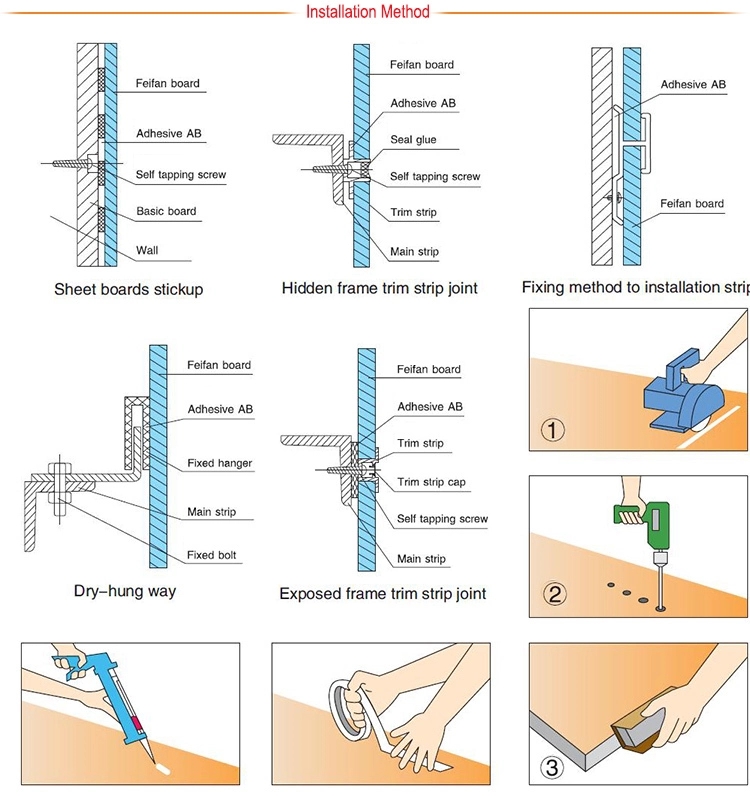

Installation Method
FAQ
1.
Q:How are ST INDUSTRY sandwich panels joined?
A:The panels have matching tongue and groove profiled edges that share a common radius and are semi-circular in shape. The tongue and groove edges provide panel connections for construction purposes.
2.
Q:Can ST INDUSTRY sandwich panels be joined where tongue & groove do not exist?
A:Yes, a joint can easily be fabricated by cutting matching grooves (routed) into the adjoining edges of panels and inserting into the so formed hollow profile a spline of matching radius, thus replicating the original tongue & groove joint.
3.
Q:Is ST INDUSTRY sandwich panel a structural material or merely a cladding?
A:ST INDUSTRY sandwich panel has ability to accept axial and flexural forces and with professional design input can be utilised as a structural building material. Meanwhile,ST INDUSTRY sandwich panel has frequently been incorporated in buildings as a cladding material.
4.
Q:What is the manufacturing capacity for ST INDUSTRY sandwich panel?
A:Manufacturing capacity of existing plant is 1,000-2,000 panels per day.
5.Q:Can ST INDUSTRY sandwich panel be used in all climates?
A:Yes. ST INDUSTRY sandwich panel can be used in all climates where conventional building materials can be used.
6
Q:.If ST INDUSTRY sandwich panel is damaged, can it be repaired?
A:ST INDUSTRY sandwich panel is easily repaired, filled and flushed and finished to match an adjoining surface.
7.
Q:Is ST INDUSTRY sandwich panel susceptible to termite attack?
A:The facing sheet and core of ST INDUSTRY sandwich panel are resistant to termite attack.
8.
Q:What is the maximum height when ST INDUSTRY sandwich panel are used for external application?
A:In general, we recommend ST INDUSTRY sandwich panel to be used as buildings'external wall no higher than 30m, but for internal partition wall there is no any limitation of height.
9.
Q:Which thickness will you recommend for interior(partition) and exterior wall?
A:Our suggestion is:50 and 75mm are suitable for interior wall(partition),100,125,150mm are suitable for exterior wall.
10.
Q:Where are they used for (typical application) ?
A:*Commerical building: office building,shopping mall,business center, hotel ect
*Industrial building: food, tobacco, chemical engineering, medical treatment, automobile, electronic building ect.
*Warehouse, sport facilities, laboratory, logistics center ect.....
