Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
ST INDUSTRY
Model Number:
cellulose fiber cement board
Name:
EPS/XPS/rock wool sandwich panel
Raw material composition:
Inorganic board+ fluorocarbon coating+Anti-fire material
Specifications:
1220*2440*
Thick:
20mm,26mm (customized)
Surface hardness:
≥3H
Wet-expansion degree(%):
≤ 0.25
Color:
Brown, cream, white,black,red,beidge, any colors
Surface finishing:
marble, wood, grain, metal, solid color
Feature:
Fireproof,waterproof,soudproof, heatproof
More Contents:
Freeze-thaw resistance,abration-resistance
Packaging & Delivery
Packaging Details
Neutral carton with plastic and foam ,angle, strong wooden pallet
Delivery Time
15 days after received the payments
100% Non-asbestos cellulose fiber cement board price

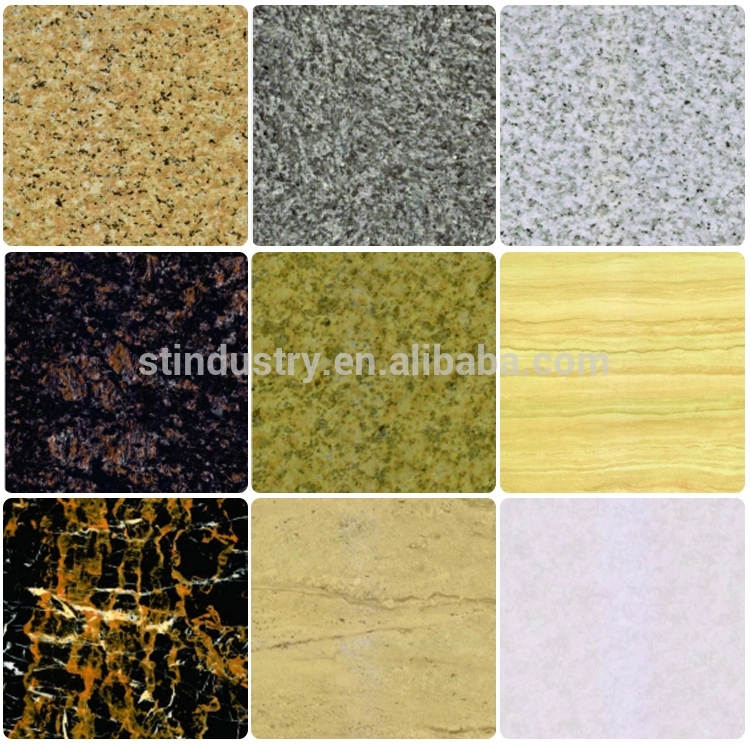

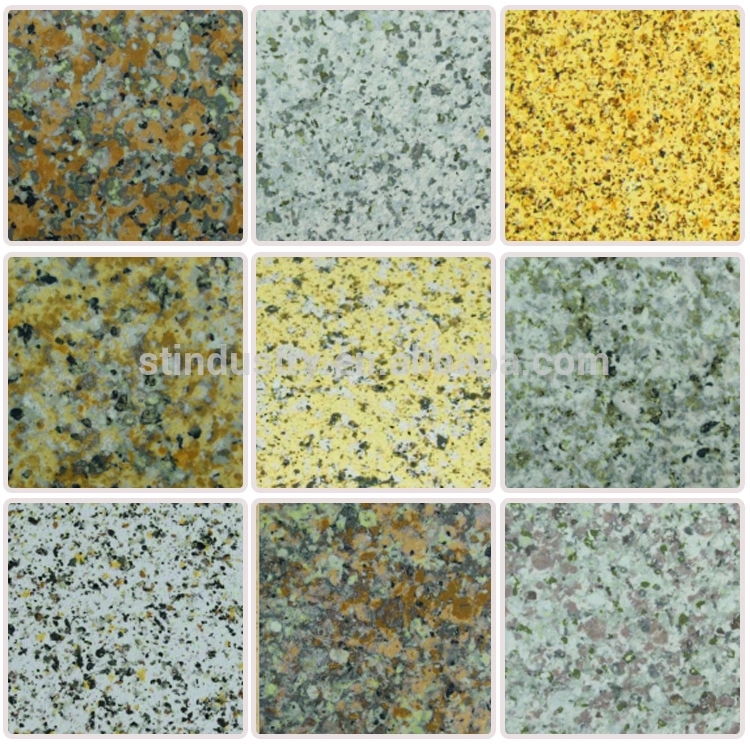

Imitation Stone Facing

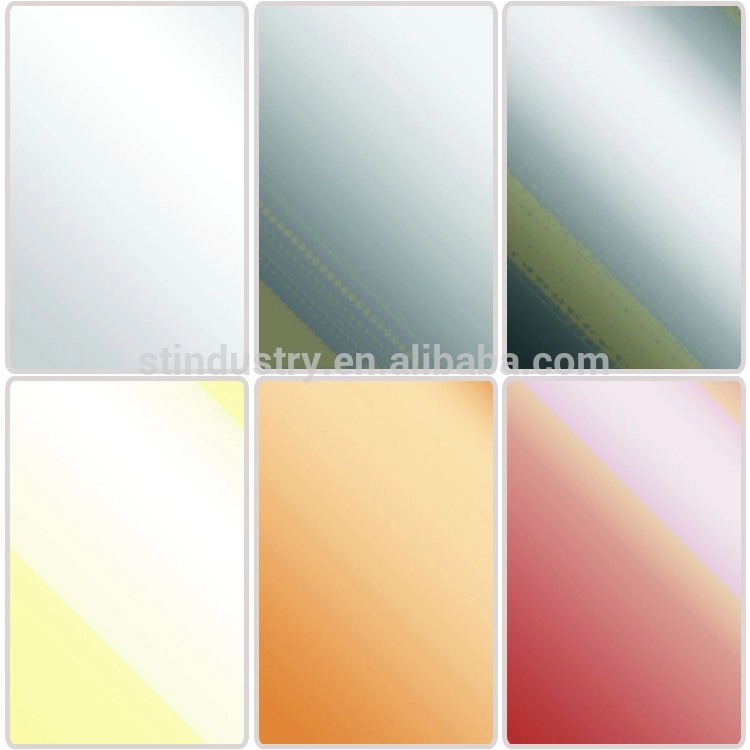

Metallic Paint Facing

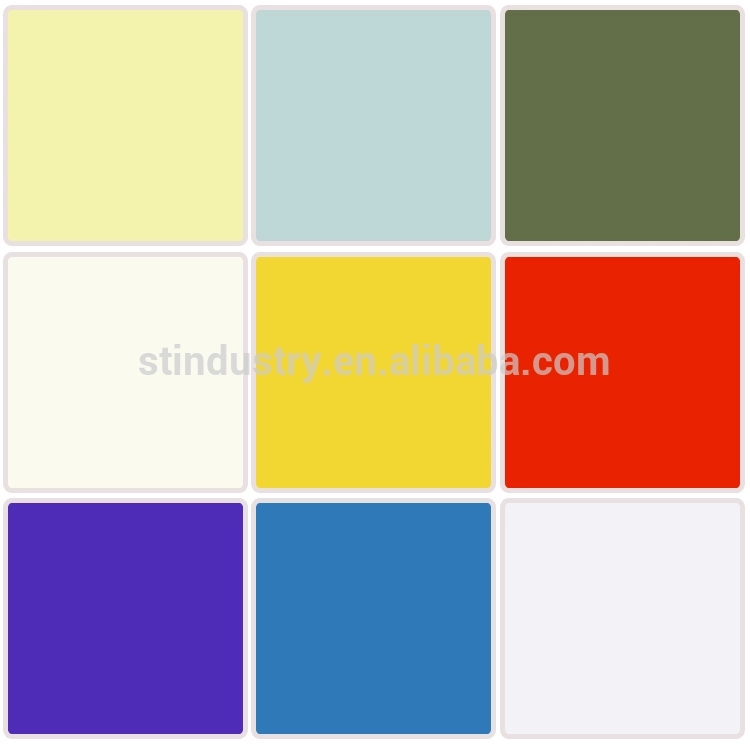

Multicolor Paint Facing

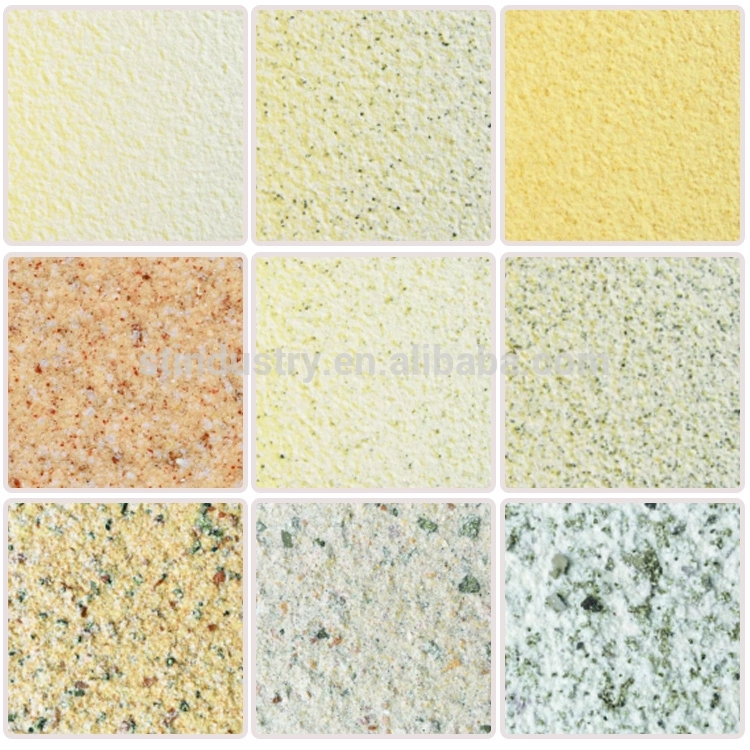

Really Stone Paint Facing
<
Color | wooden grain, marble stones, solid color | Category | ST decorative board | |

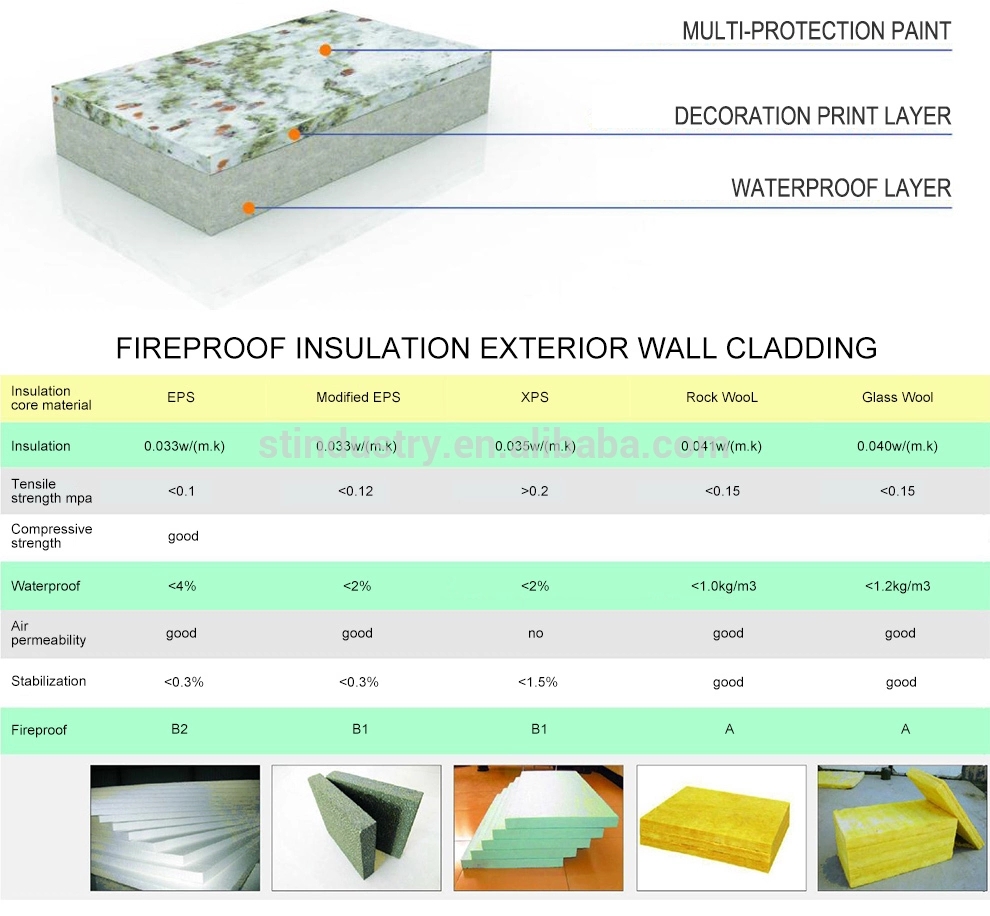

Thickness | 26mm 20mm ( Can be customized) | Anti-fire material | EPS | 1 layer board |
Modified EPS | 1 layer board | |||
XPS | 1 layer board | |||
Rock Wool | 2 layer board | |||
Standard Size | 1220MM*2440MM (Other size can be customized) | Fireproofing | A | |
Washability | Without leakage after wiping for 100times | Adhesive force,level | 0 | |
Freezing resistance | Without crack and delamination after 25 freeze-thawcycles | Thermal Conductivity | ≤0.35w (m.k) | |
Asbestos content | 100% free, accordant to HJ/T205-2005 | |||
Radioactivity | Environment protection class A , accordant to GB6565-2001 | |||
Incombustibility | Class A , accordant to GB8624-2006 | |||
Frost-resistance | No rupture and shrinkage after going for 25 times of freeze-thaw cycle | |||
Water imperimeability | No damp or drip on the back after dipped with water 24 hours | |||
Estimated durability | More than 20 years | |||

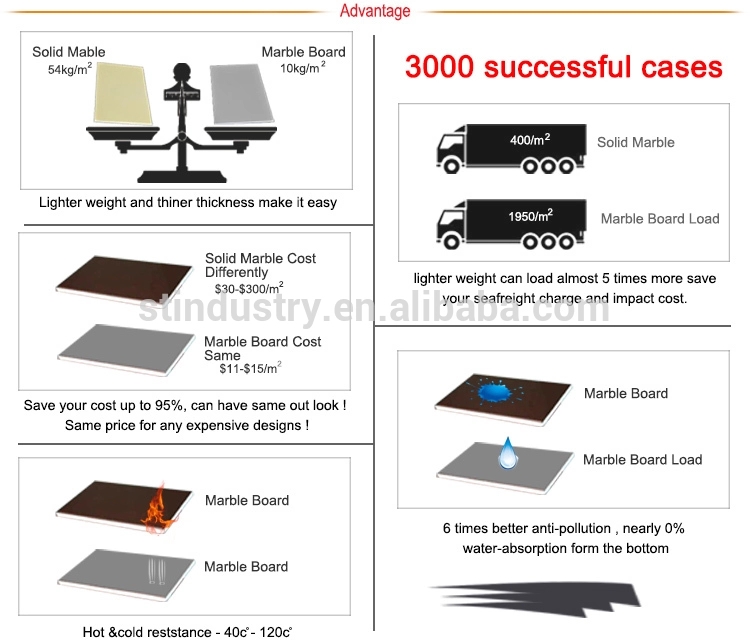

Advantages | 1. Low density, light weight. | |||
2. Fireproof, thermal insulation, fungus resistant, moisture-proof, sound insulation. | ||||
3. Easy to install, short construction period, splicing installation saves time and labor. Saves much cost than traditional brick construction. | ||||
4. 26mm thickness sandwich board is able to bear 50KG light capacity. |
Product application
About us

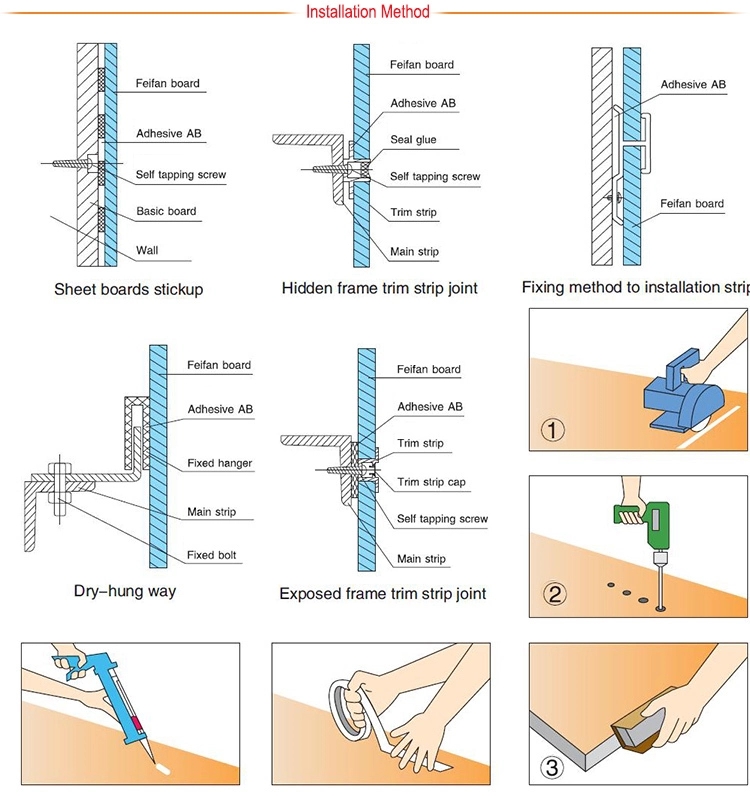

Installation Method
FAQ
1.
Q:How are ST INDUSTRY sandwich panels joined?
A:The panels have matching tongue and groove profiled edges that share a common radius and are semi-circular in shape. The tongue and groove edges provide panel connections for construction purposes.
2.
Q:Can ST INDUSTRY sandwich panels be joined where tongue & groove do not exist?
A:Yes, a joint can easily be fabricated by cutting matching grooves (routed) into the adjoining edges of panels and inserting into the so formed hollow profile a spline of matching radius, thus replicating the original tongue & groove joint.
3.
Q:Is ST INDUSTRY sandwich panel a structural material or merely a cladding?
A:ST INDUSTRY sandwich panel has ability to accept axial and flexural forces and with professional design input can be utilised as a structural building material. Meanwhile,ST INDUSTRY sandwich panel has frequently been incorporated in buildings as a cladding material.
4.
Q:What is the manufacturing capacity for ST INDUSTRY sandwich panel?
A:Manufacturing capacity of existing plant is 1,000-2,000 panels per day.
5.Q:Can ST INDUSTRY sandwich panel be used in all climates?
A:Yes. ST INDUSTRY sandwich panel can be used in all climates where conventional building materials can be used.
6
Q:.If ST INDUSTRY sandwich panel is damaged, can it be repaired?
A:ST INDUSTRY sandwich panel is easily repaired, filled and flushed and finished to match an adjoining surface.
7.
Q:Is ST INDUSTRY sandwich panel susceptible to termite attack?
A:The facing sheet and core of ST INDUSTRY sandwich panel are resistant to termite attack.
8.
Q:What is the maximum height when ST INDUSTRY sandwich panel are used for external application?
A:In general, we recommend ST INDUSTRY sandwich panel to be used as buildings'external wall no higher than 30m, but for internal partition wall there is no any limitation of height.
9.
Q:Which thickness will you recommend for interior(partition) and exterior wall?
A:Our suggestion is:50 and 75mm are suitable for interior wall(partition),100,125,150mm are suitable for exterior wall.
10.
Q:Where are they used for (typical application) ?
A:*Commerical building: office building,shopping mall,business center, hotel ect
*Industrial building: food, tobacco, chemical engineering, medical treatment, automobile, electronic building ect.
*Warehouse, sport facilities, laboratory, logistics center ect.....
