Place of Origin: Shanghai, China (Mainland)
Brand Name: ST INDUSTRY
Model Number: Cladding board
Name: Cladding board
Raw materials: fibre cement reinforced calcium silicate board
Thicknesses: 6 / 9 / 12 mm
Lengths: 1800 / 2400 / 2440 / 3000 / 3050mm
Widths: 900 / 1200 / 1220mm
mid density: 1100-1400 kg/m3 +/-5%
High density: 1400-1700kg/m3 +/-5%
Surface alkalinity: pH 7-10
Certification: ISO14001/ISO 9001
Advantage: Non asbestos,fireproof,waterproof
| Packaging Details | Neutral carton with plastic and foam ,angle, strong wooden pallet |
|---|---|
| Delivery Time | Shipped in 25 days after payment |

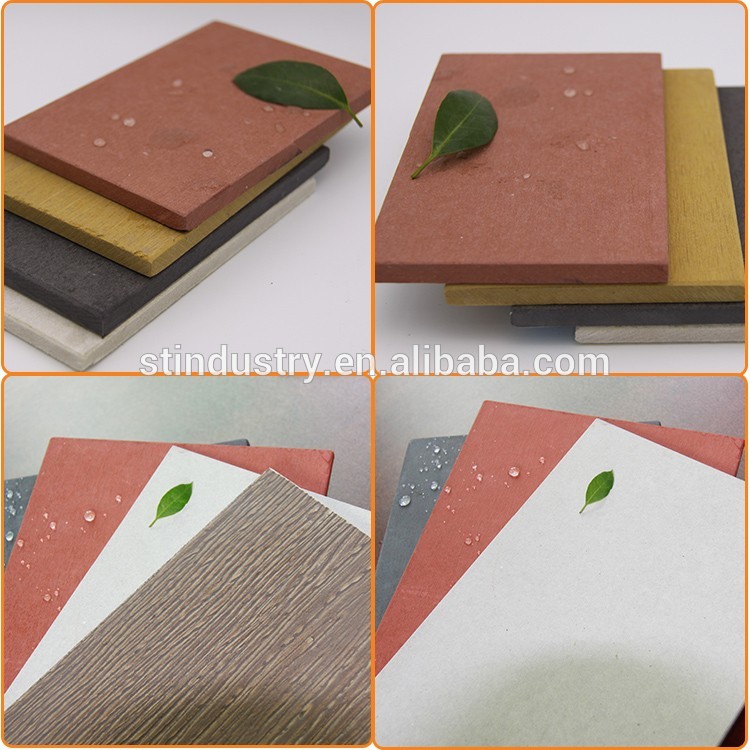

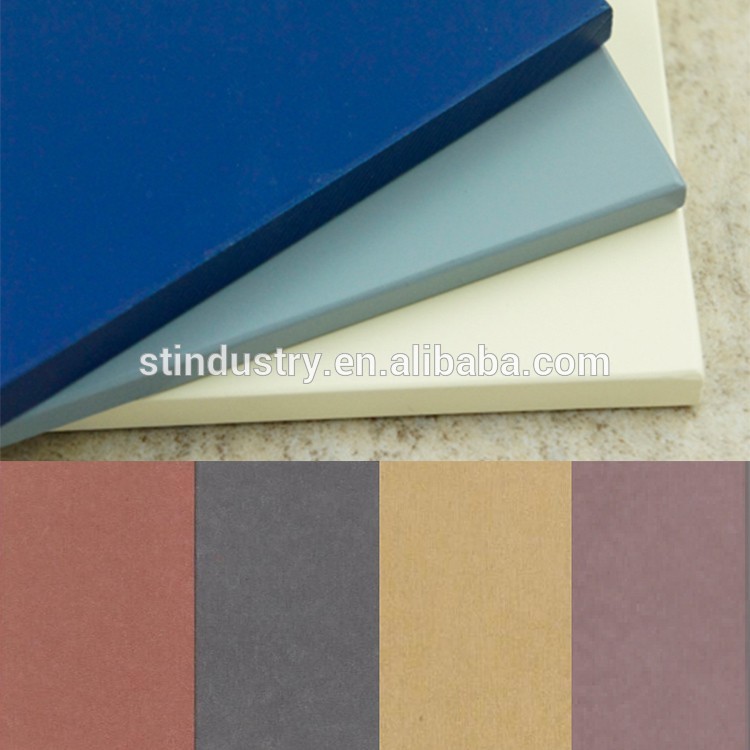

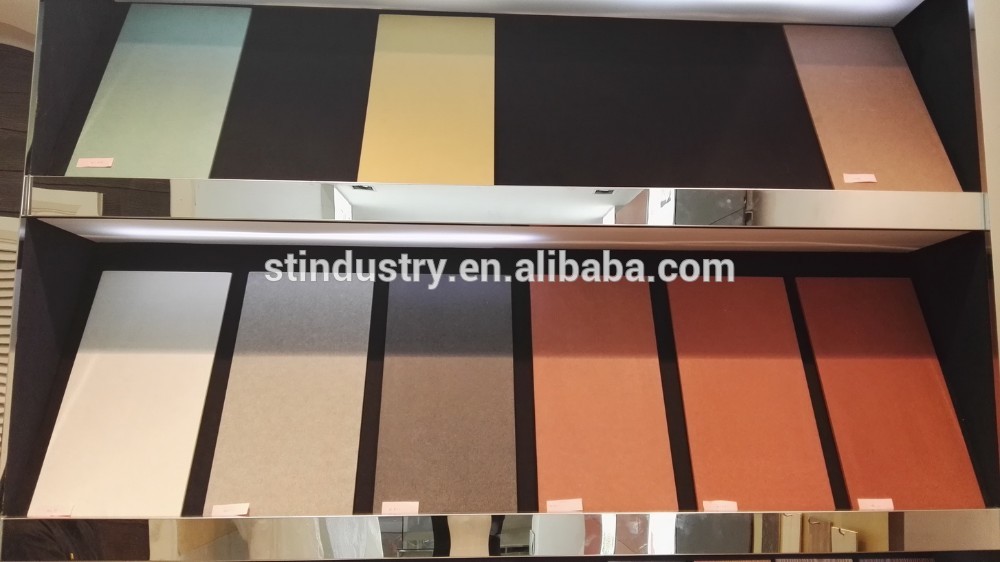

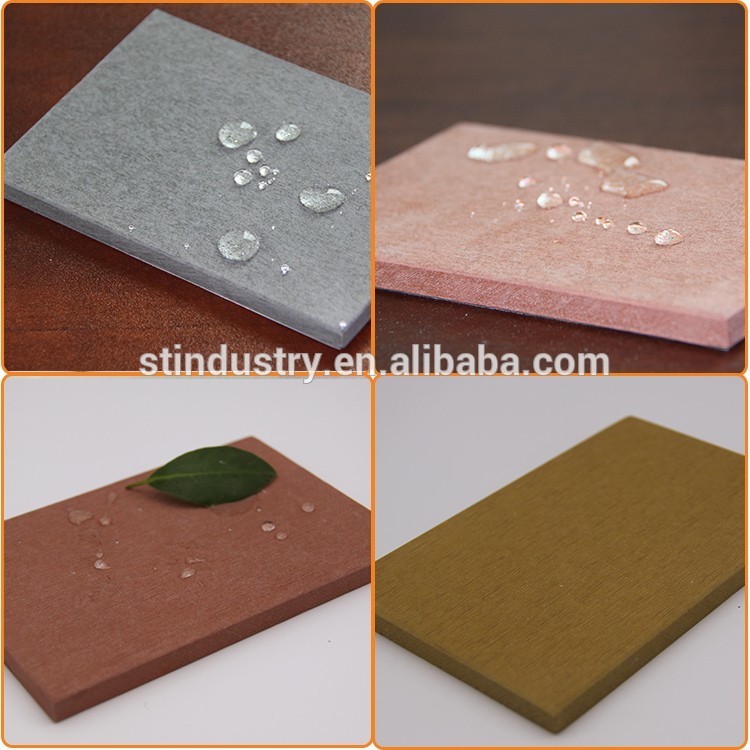

More colors:

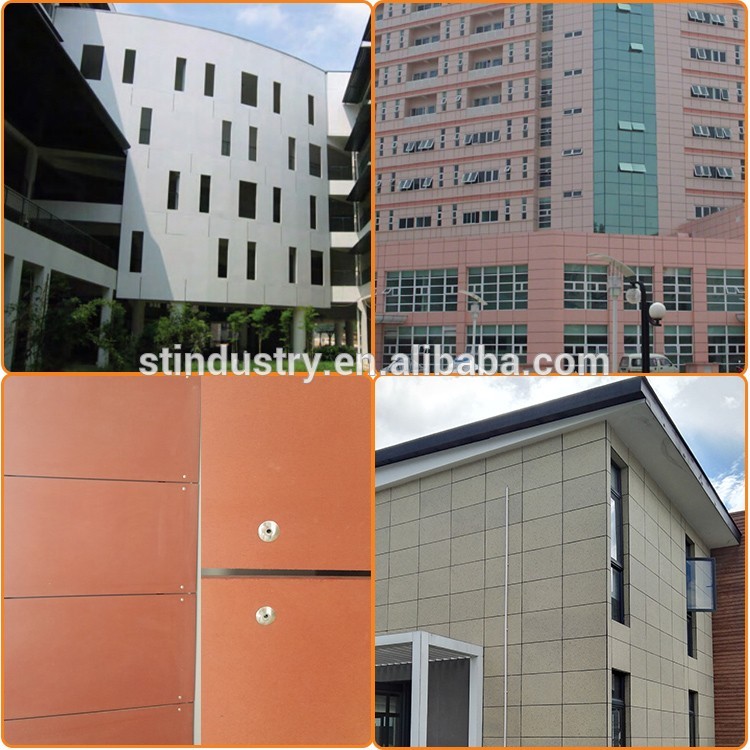

Application showcase:
Click the link for more types:
https://stindustry.en.alibaba.com/productlist.html
| Thicknesses | 6 / 9 / 12 mm |
| Widths | 900 / 1200 / 1220mm |
| Lengths | 1800 / 2400 / 2440 / 3000 / 3050mm |
| Apparent Density | BS EN 12467 | 1300 kg/m3 +/-5% | ||
| Nominal weight | ambient | 8.60 kg/m2 – 6mm | ||
| 12.90 kg/m2 – 9mm | ||||
| 17.20 kg/m2 – 12mm | ||||
| Surface alkalinity | In-house | pH 7-10 | ||
| Flexural strength | BS EN 12467 | 9.48 MPa (along grain / transverse ) | ||
| 14.07 MPa (across grain / longitudinal ) | ||||
| 11.75 MPa (average of directions) | ||||
| Bending modulus | BS EN 12467 | 7100 MPa | ||
| 8300 MPa | ||||
| Moisture movement (ambient to saturated) | In-house | 0.5mm/m | ||
| Dimensional changes in length due to relative humidity | BS EN 318 | + 0.03% @20°C, RH 30%~85% | ||
| - 0.027% @20°C, RH 85%~30% | ||||
| Moisture content | by weight | Ex works - 15% | ||
| In situ - 5% | ||||
| Water absorption capacity | by weight | 30% | ||
| Thermal conductivity | ASTM C518 | 0.34 W/mk | ||
| EN 12664 | 0.26 W/mk | |||
| JC/T 564 | 0.20 W/mK | |||
| Linear thermal expansion | BS EN ISO 10515-8 | -3.4 x 1E-7/°C | ||
| Fire Performance | ||||
| Resistance to continuous heating | In-house | 80°C | ||
| Non-combustibility | BS EN ISO 1182 | Pass | ||
| BS476: Part 4 | ||||
