Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
ST INDUSTRY
Model Number:
Cladding board
Name:
Cladding board
Raw materials:
fibre cement reinforced calcium silicate board
Thicknesses:
6 / 9 / 12 mm
Lengths:
1800 / 2400 / 2440 / 3000 / 3050mm
Widths:
900 / 1200 / 1220mm
mid density:
1100-1400 kg/m3 +/-5%
High density:
1400-1700kg/m3 +/-5%
Surface alkalinity:
pH 7-10
Certification:
ISO14001/ISO 9001
Advantage:
Non asbestos,fireproof,waterproof
Packaging & Delivery
Packaging Details
Neutral carton with plastic and foam ,angle, strong wooden pallet
Delivery Time
Shipped in 25 days after payment

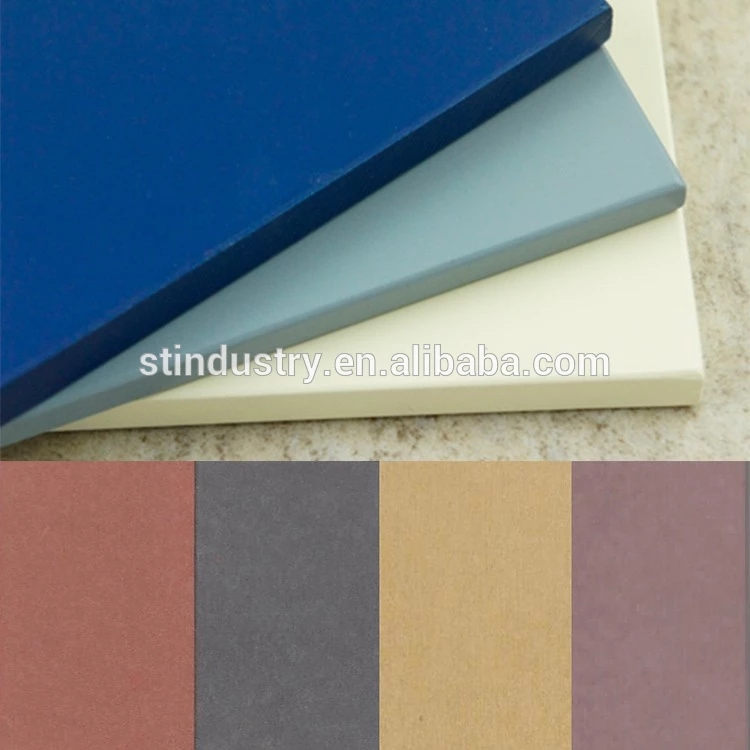

More colors:

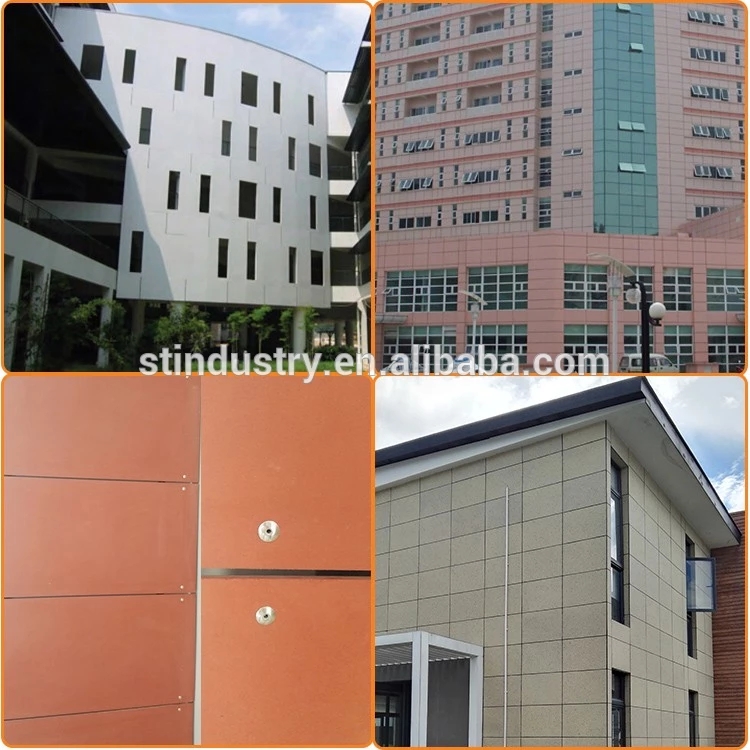

Application showcase:
Click the link for more types:
https://stindustry.en.alibaba.com/productlist.html
Thicknesses | 6 / 9 / 12 mm |
Widths | 900 / 1200 / 1220mm |
Lengths | 1800 / 2400 / 2440 / 3000 / 3050mm |
Apparent Density | BS EN 12467 | 1300 kg/m3 +/-5% | ||
Nominal weight | ambient | 8.60 kg/m2 – 6mm | ||
12.90 kg/m2 – 9mm | ||||
17.20 kg/m2 – 12mm | ||||
Surface alkalinity | In-house | pH 7-10 | ||
Flexural strength | BS EN 12467 | 9.48 MPa (along grain / transverse ) | ||
14.07 MPa (across grain / longitudinal ) | ||||
11.75 MPa (average of directions) | ||||
Bending modulus | BS EN 12467 | 7100 MPa | ||
8300 MPa | ||||
Moisture movement (ambient to saturated) | In-house | 0.5mm/m | ||
Dimensional changes in length due to relative humidity | BS EN 318 | + 0.03% @20°C, RH 30%~85% | ||
- 0.027% @20°C, RH 85%~30% | ||||
Moisture content | by weight | Ex works - 15% | ||
In situ - 5% | ||||
Water absorption capacity | by weight | 30% | ||
Thermal conductivity | ASTM C518 | 0.34 W/mk | ||
EN 12664 | 0.26 W/mk | |||
JC/T 564 | 0.20 W/mK | |||
Linear thermal expansion | BS EN ISO 10515-8 | -3.4 x 1E-7/°C | ||
Fire Performance | ||||
Resistance to continuous heating | In-house | 80°C | ||
Non-combustibility | BS EN ISO 1182 | Pass | ||
BS476: Part 4 | ||||
JIS A 1321 | ||||
Heat of combustion | BS EN ISO 1716 | Pass | ||
European Building Classification | EN 13501-1 | Euro Class A1 & A1Fl | ||
Durability & Aging Performance | ||||
